DVE3 SERIES

Gearmotors Series DVE3

Available for the sector

Poultry Farms

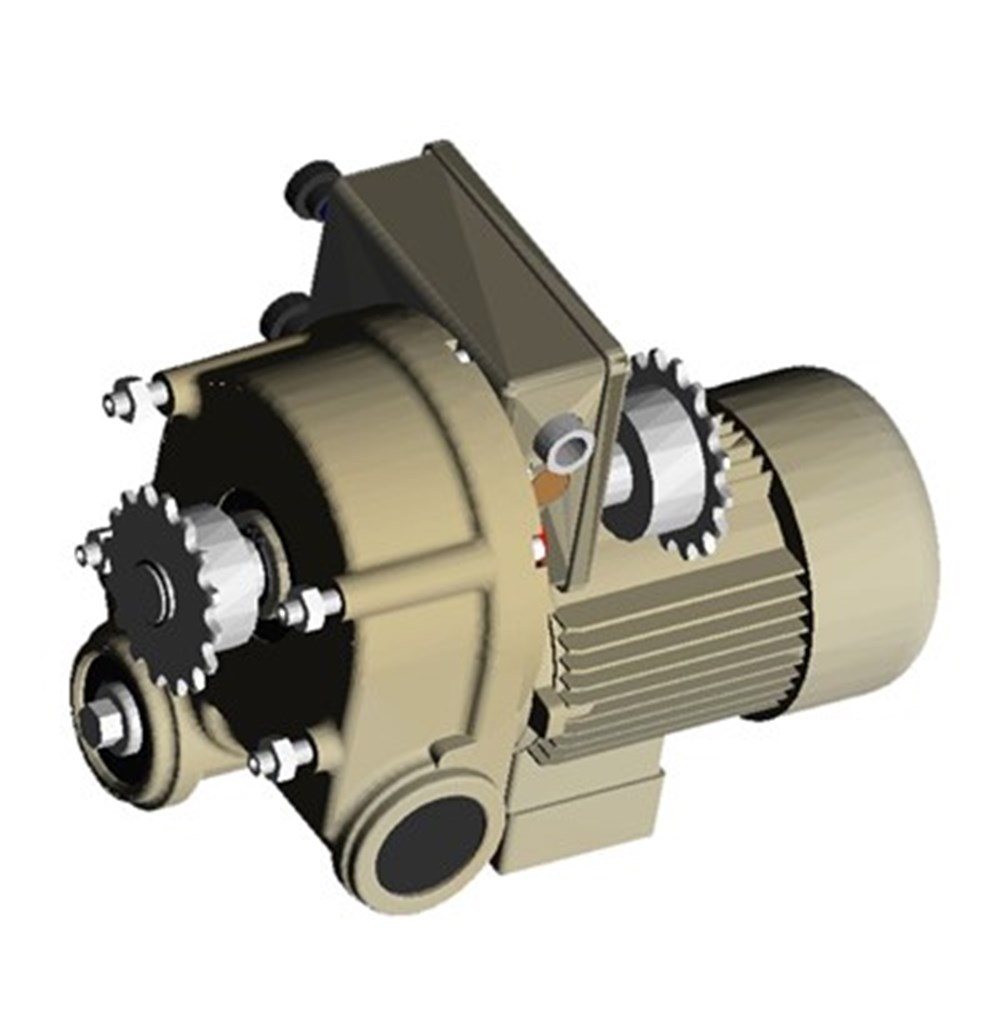

Integrated gear motor with compact design fit for those applications where the revolution speed of the shaft is about 4 RPM, easy to mount on any type of structure.

Models

Accessories

Download

Item code	Ph	Hz	Kw	A	V	Rpm	Nm	Kg
DVE3*141-.... - 3ph-50Hz	3	50	0.75	2.1	230-440	4	350	22
DVE3*950-.... - 3ph-50Hz	3	50	0.37	1.2	230-440	2.6	360	22
DVE3*950M-.... - 1ph-50Hz	1	50	0.37	3.2	230	2.6	330	23
DVE3*141M-.... - 1ph-50Hz	1	50	0.75	5	230	4	320	22
DVE3*141-.... - 3ph-60Hz	3	60	0.90	3.5	277-480	4.3	290	22
DVE3*950-.... - 3ph-50Hz	3	50	0.44	1.7	277-480	3.1	310	23

RELATED PRODUCTS

• Limit switch

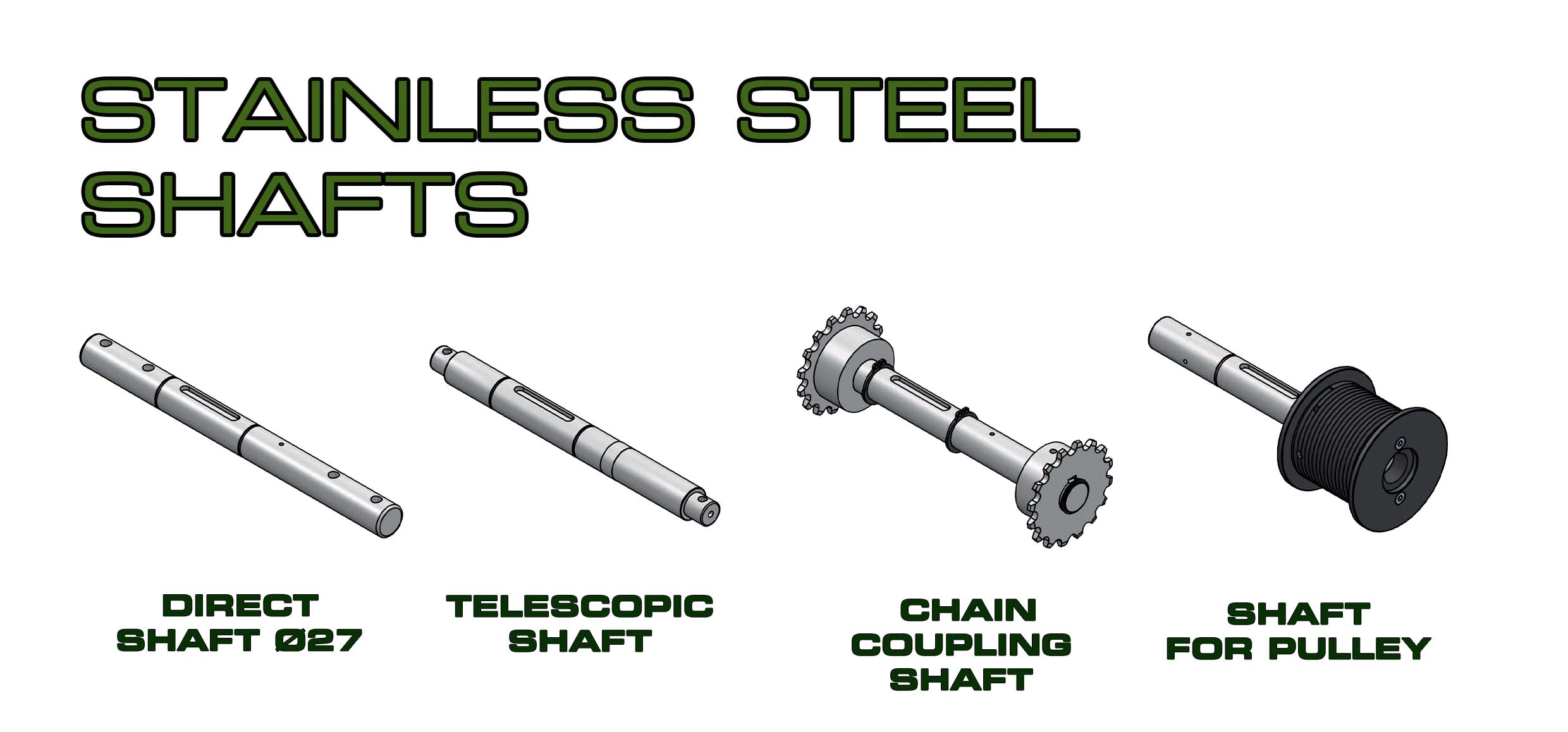

• Stainless steel shafts

• Mounting plates DVE

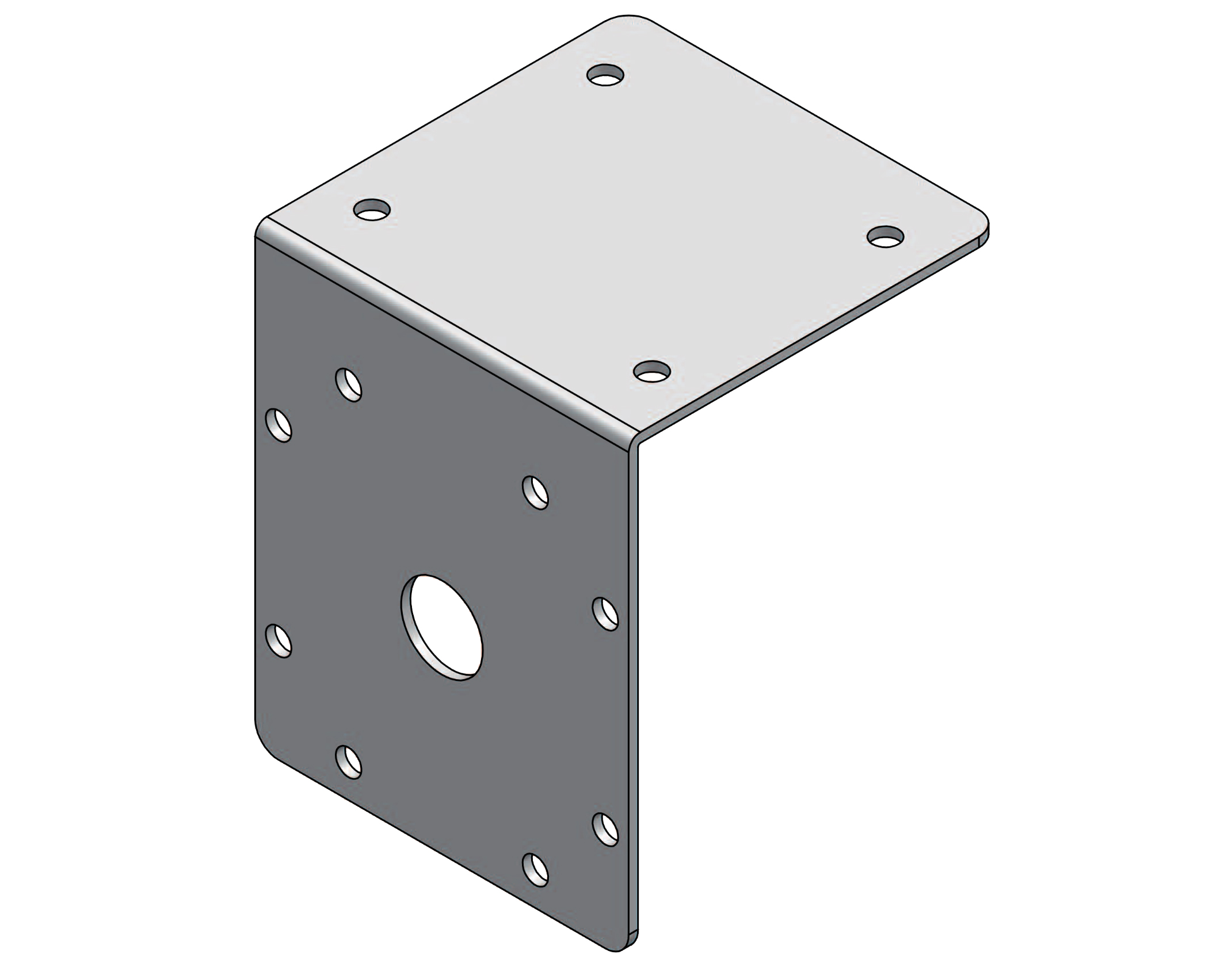

• Ceiling mounting plate for DVE series

• Single pulley

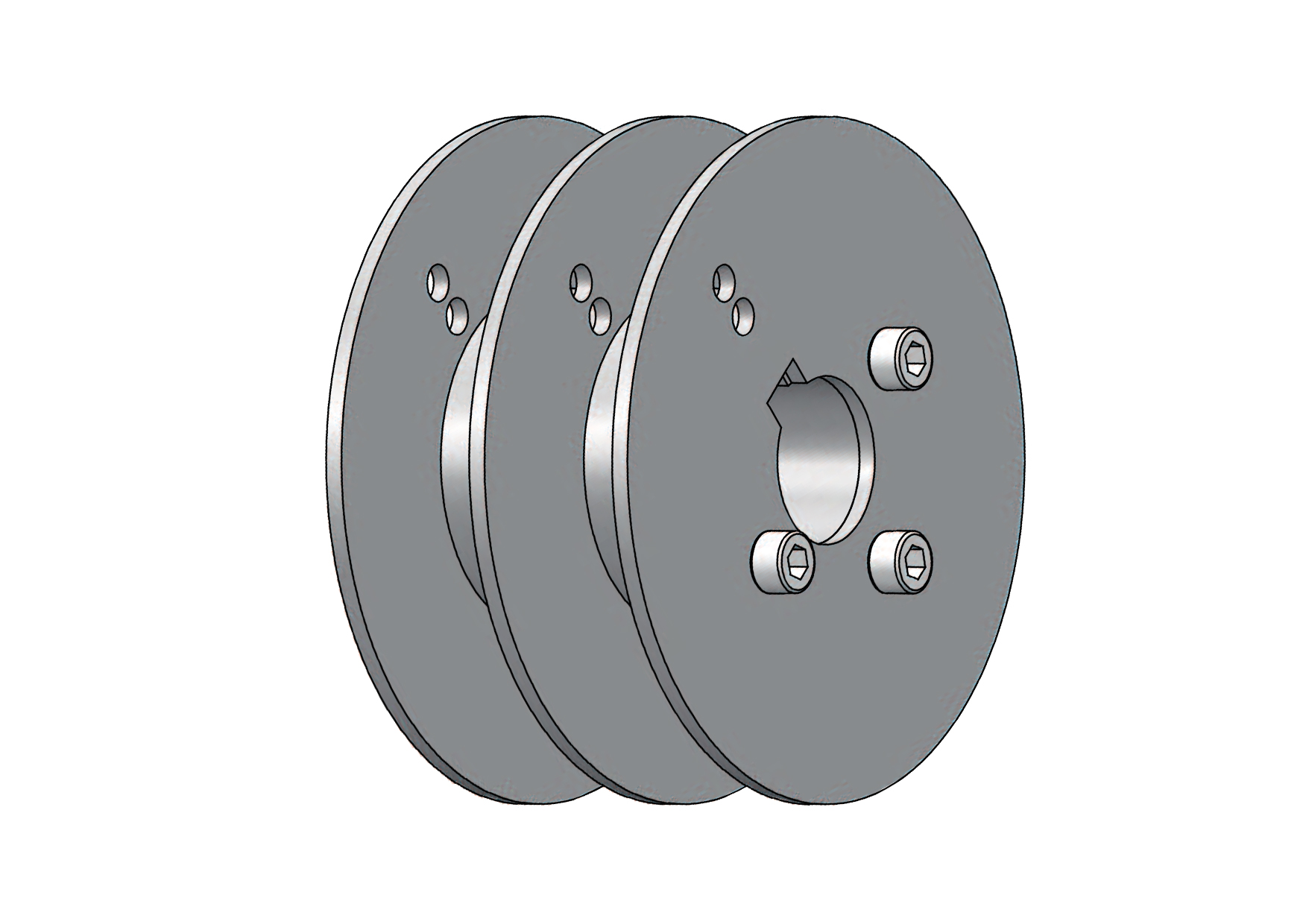

• Double pulley

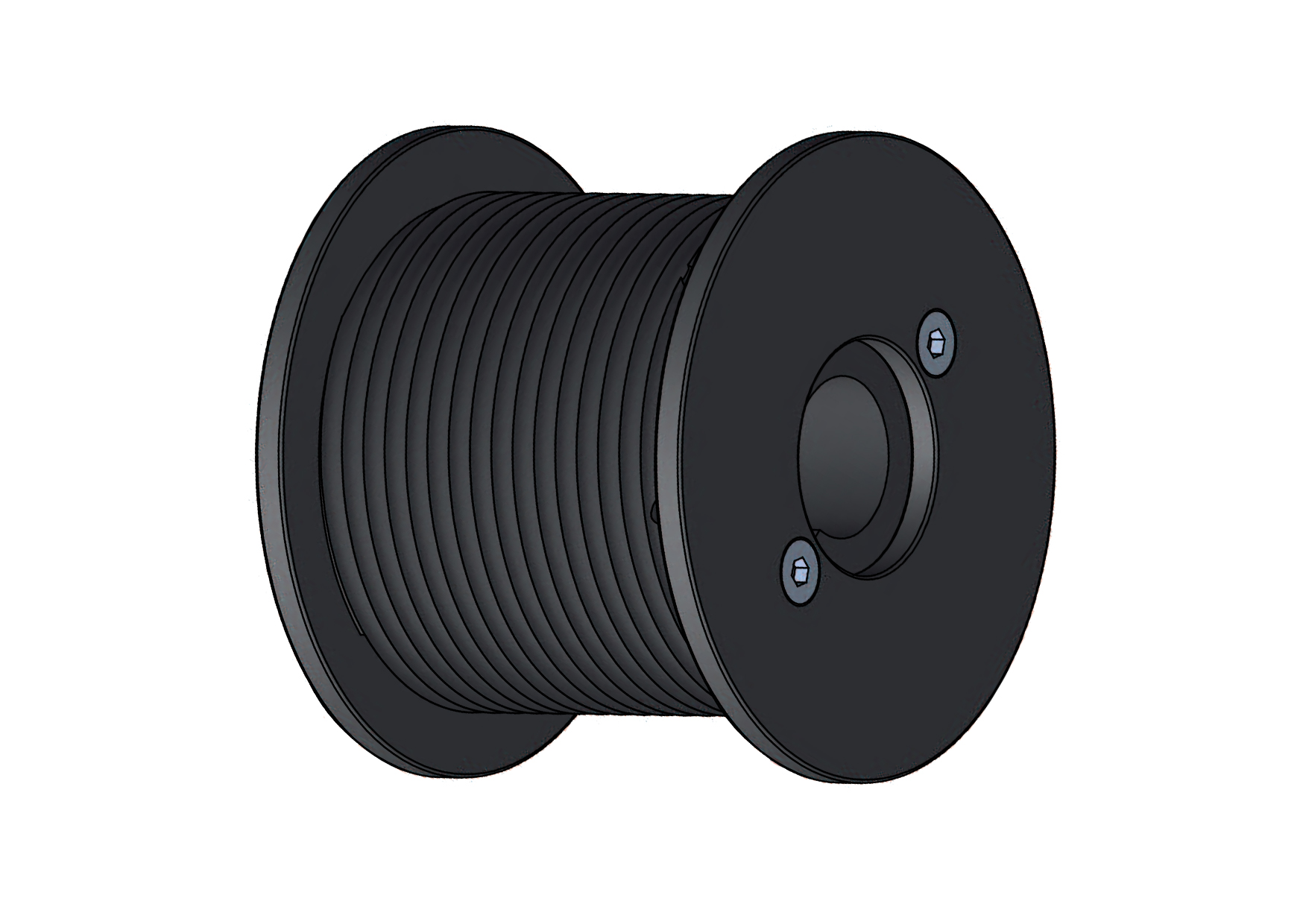

• Large pulley

• Cable drum

• Double band pulley
