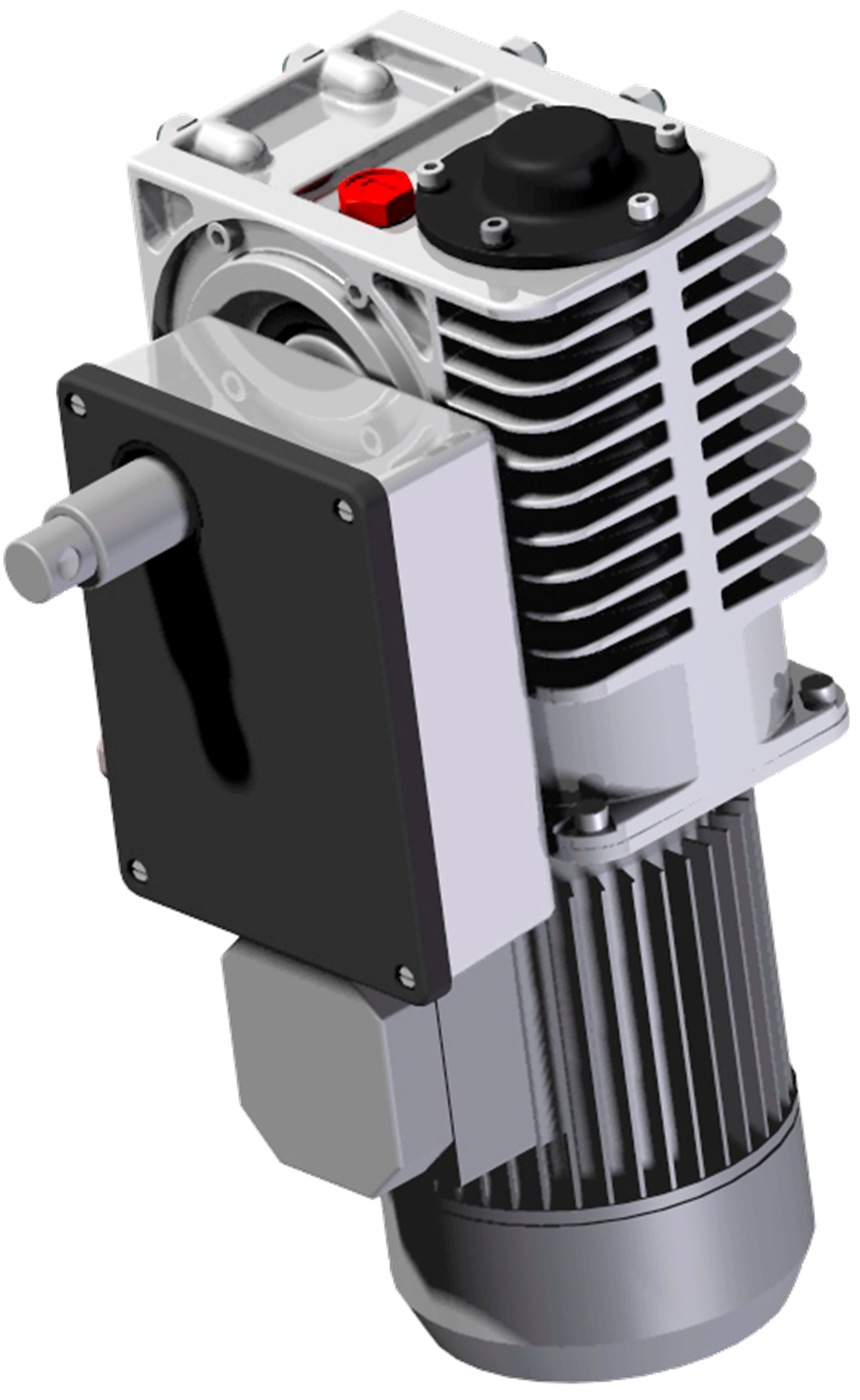

PRP1 SERIES

Gearmotors Series PRP1

Available for the sector

Poultry Farms

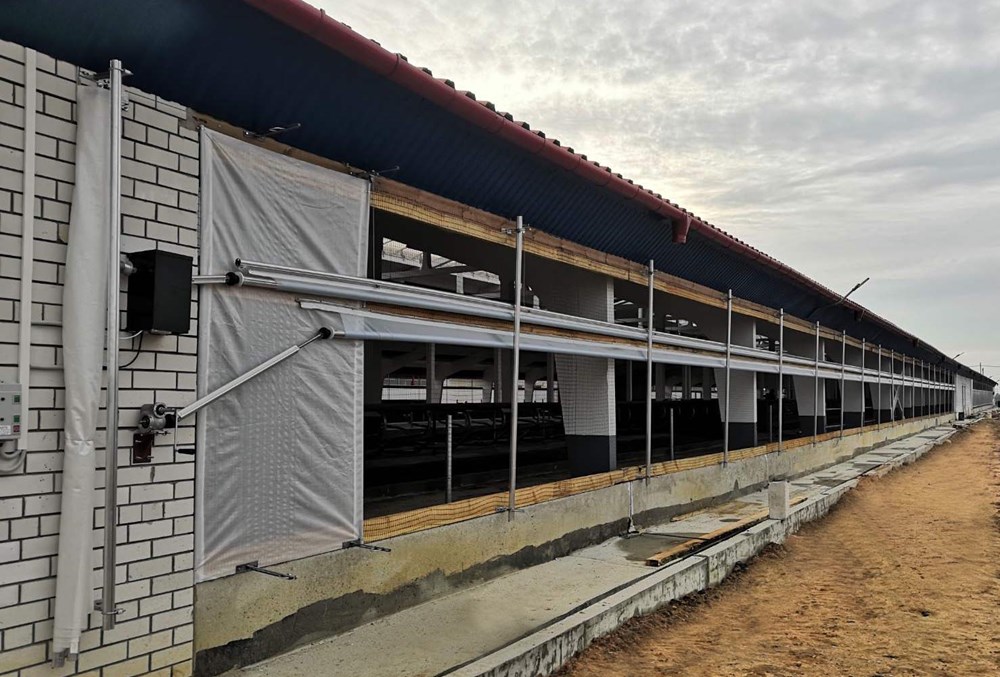

Model designed for the new types of roll-up openings for cooling pads and blackout covers. Its compact design and its small size make it suitable for lateral applications with telescopic arm, or in combination with sliding guides/trolleys. Speed: 6 RPM.

Models

Accessories

Download

Item code	Ph	Hz	Kw	A	V	Rpm	Nm	Kg
PRP1-1435-.... - 3ph-50Hz/60Hz	3	50/60	0.25	0.9	230-440	6	170	14
PRP1-1450-.... - 3ph-50Hz/60Hz	3	50/60	0.37	1.2	230-440	6	240	17
PRP1-1425-.... - 1ph-50Hz	1	50	0.18	1.7	230	6	110	14
PRP1-1450-.... - 1ph-50Hz	1	50	0.37	3.9	230	6	170	17

PRODOTTI CORRELATI

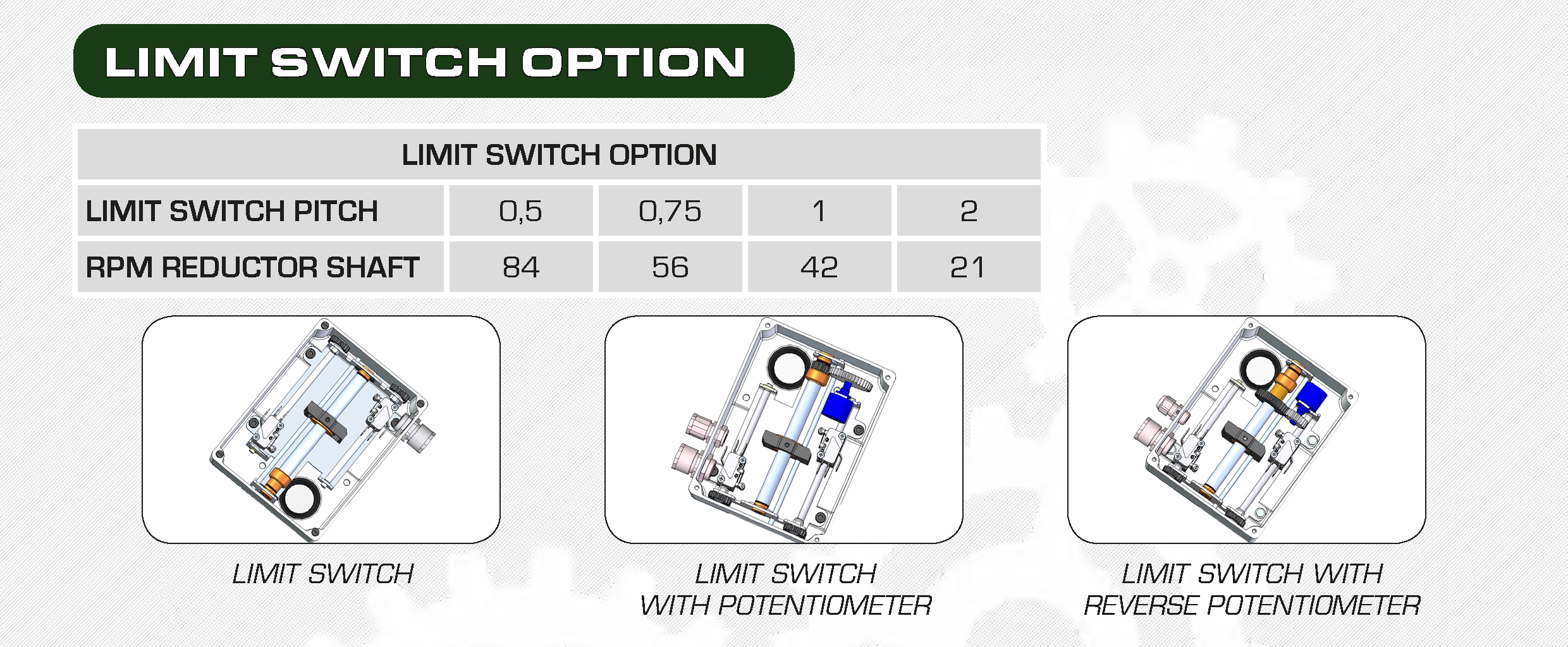

• Limit switch

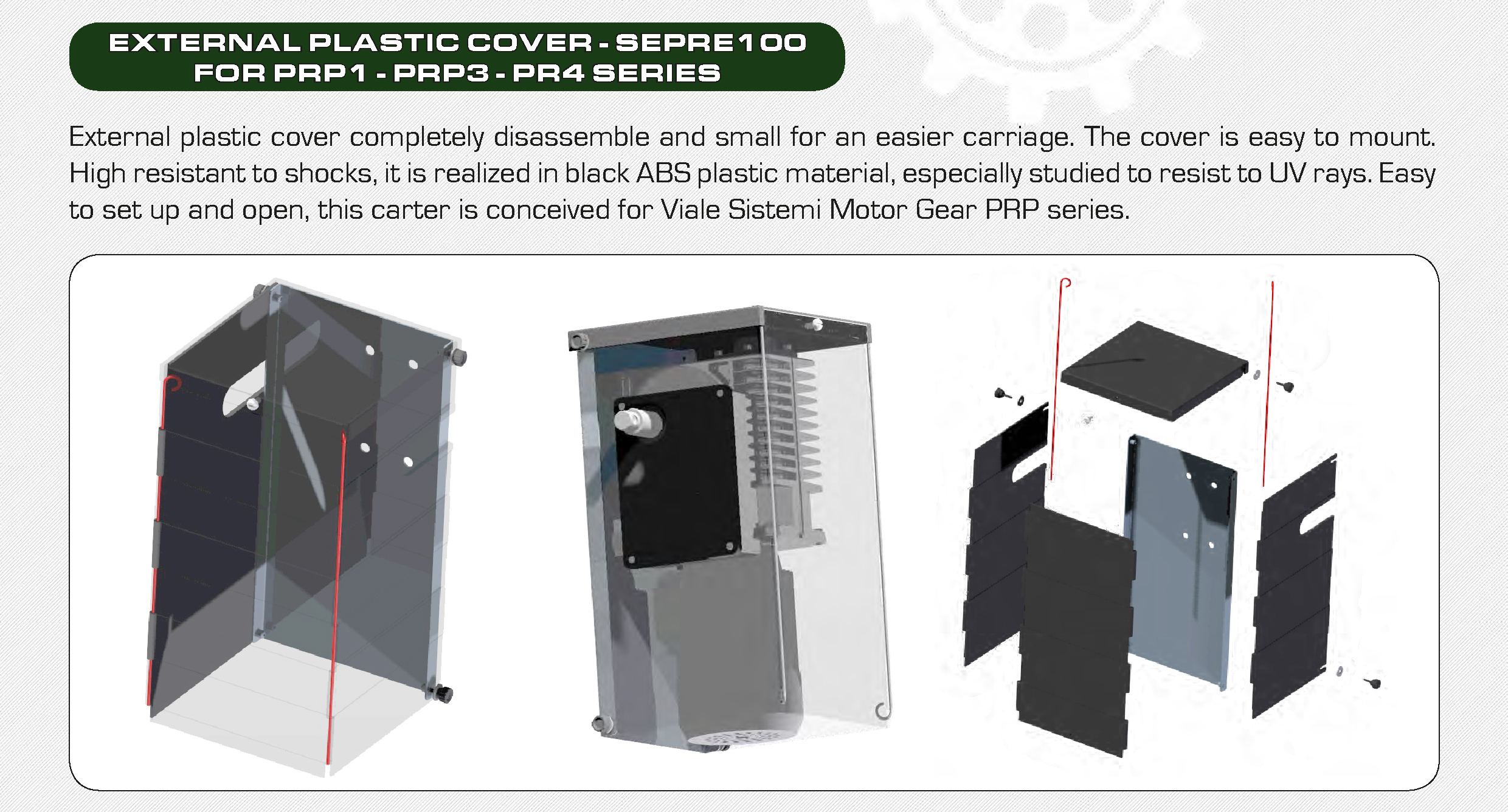

• External plastic cover

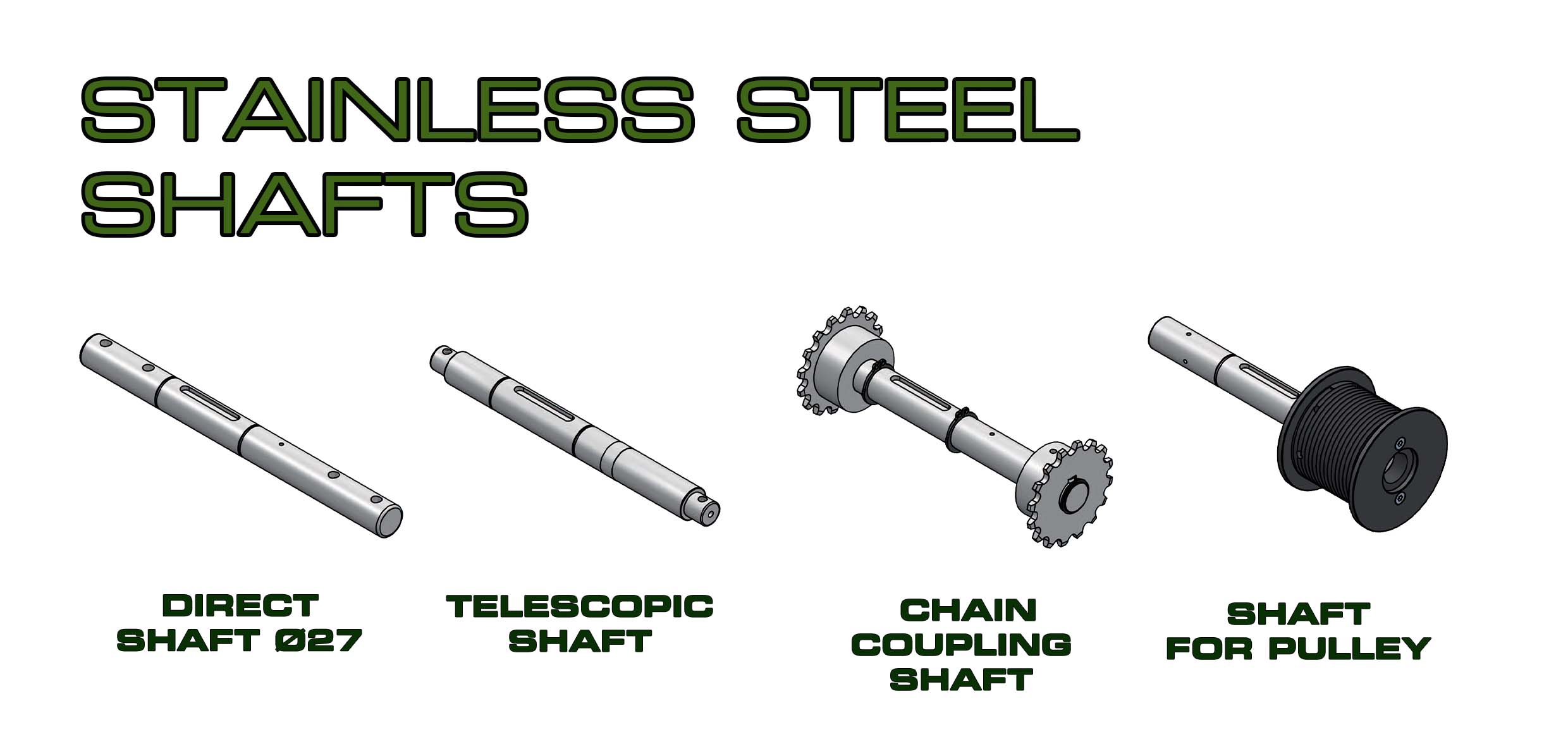

• Stainless steel shafts

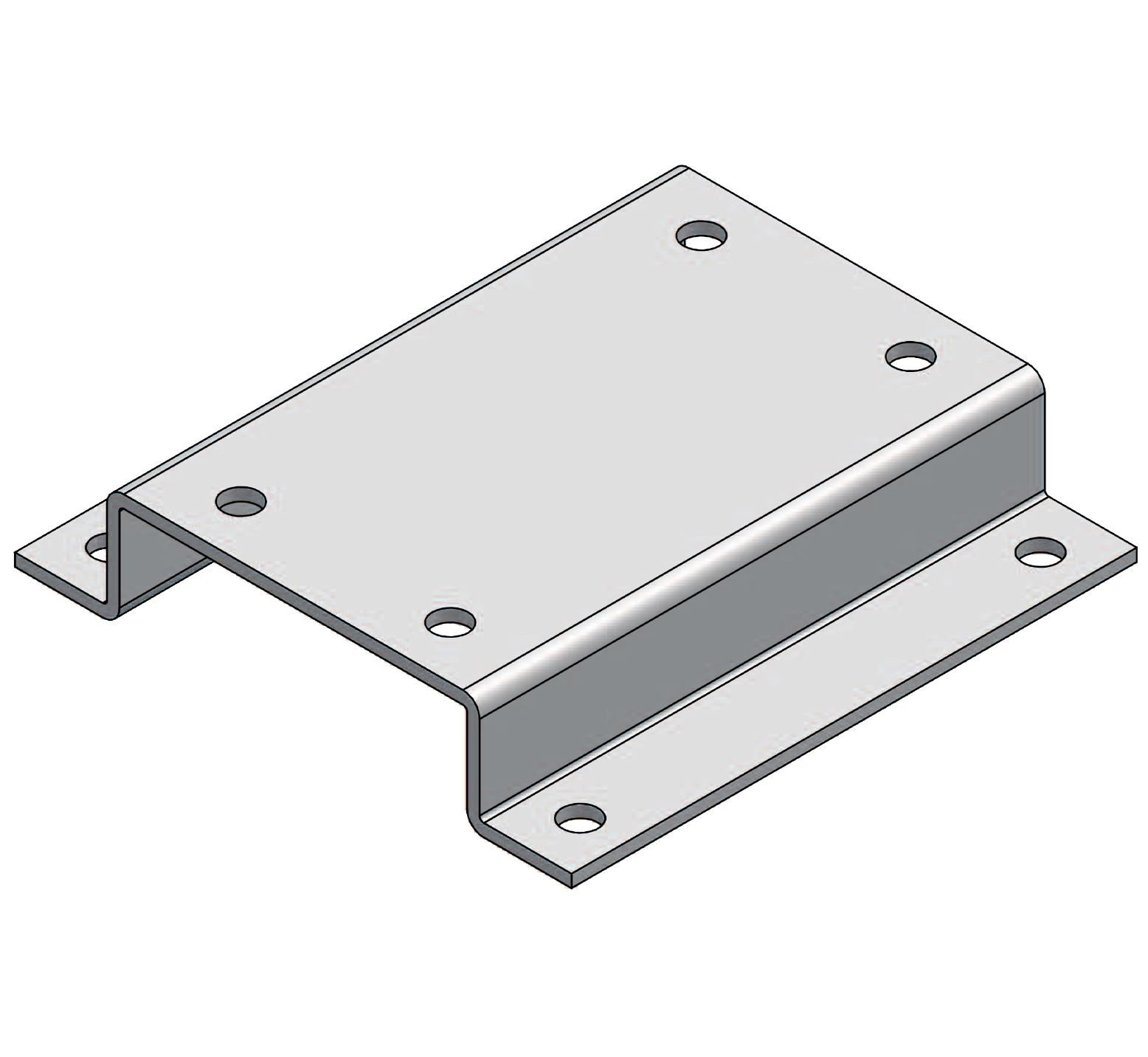

• Wall mounting plate for PR series

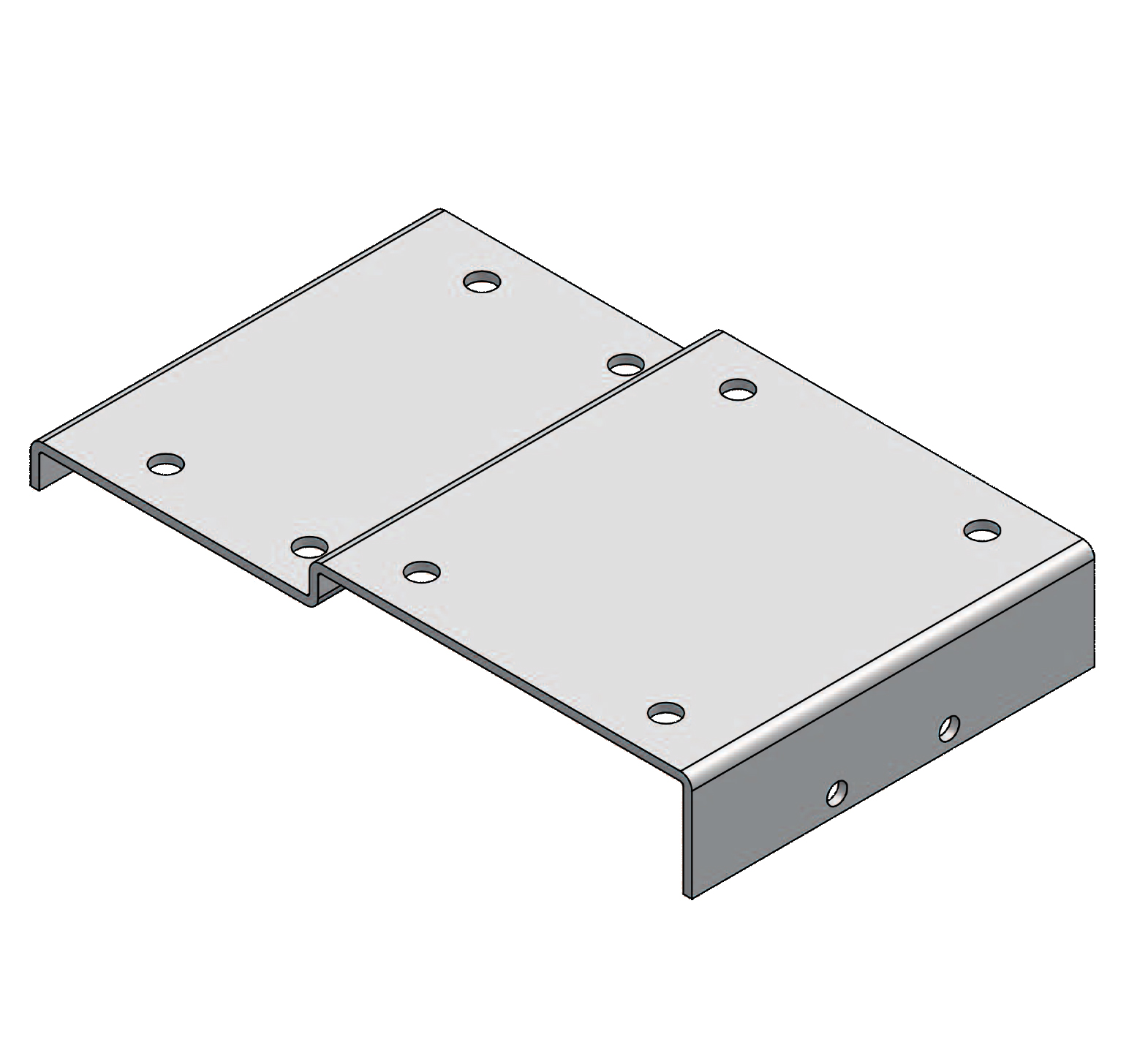

• Ceiling mounting plate for PR series

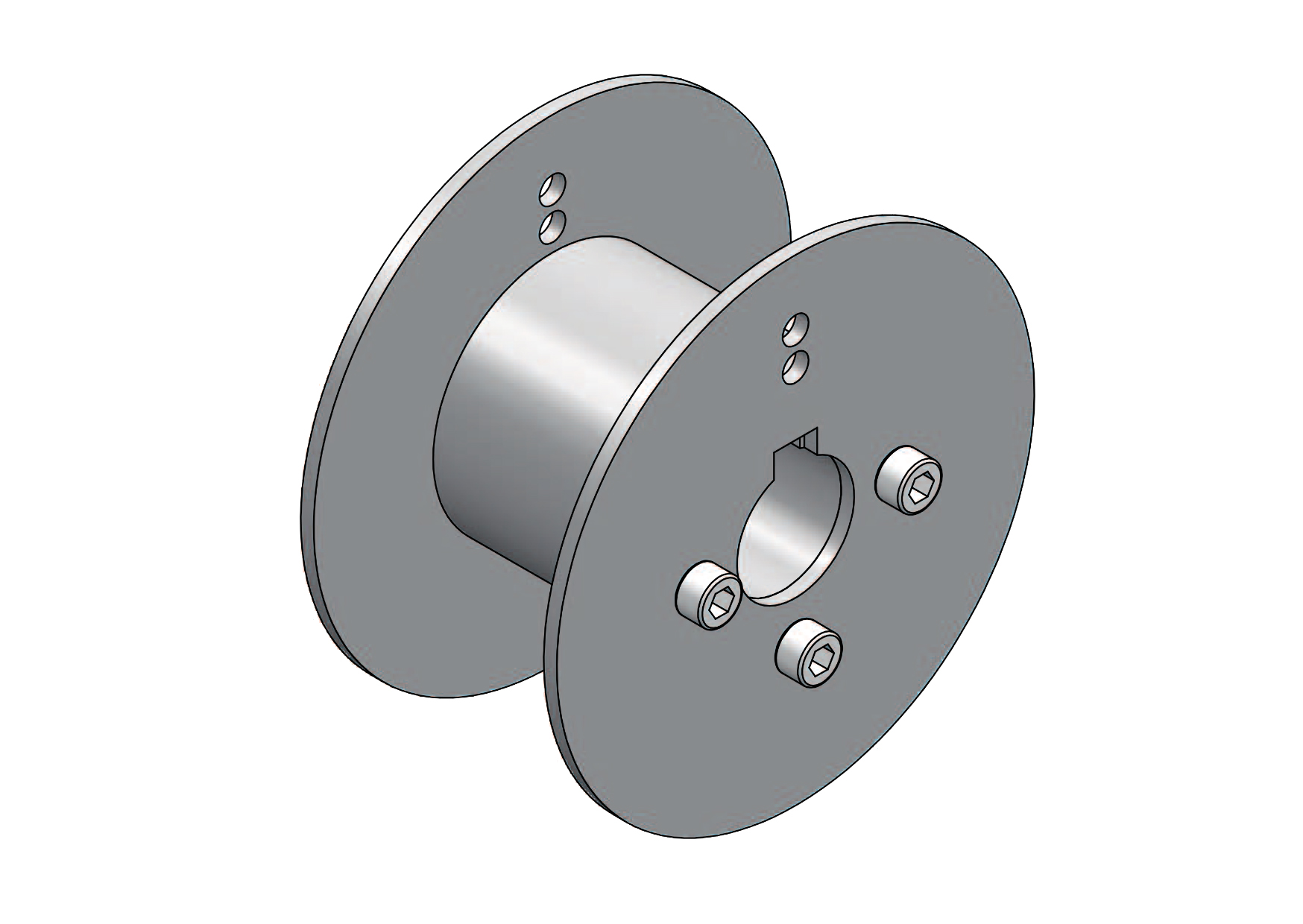

• Single pulley

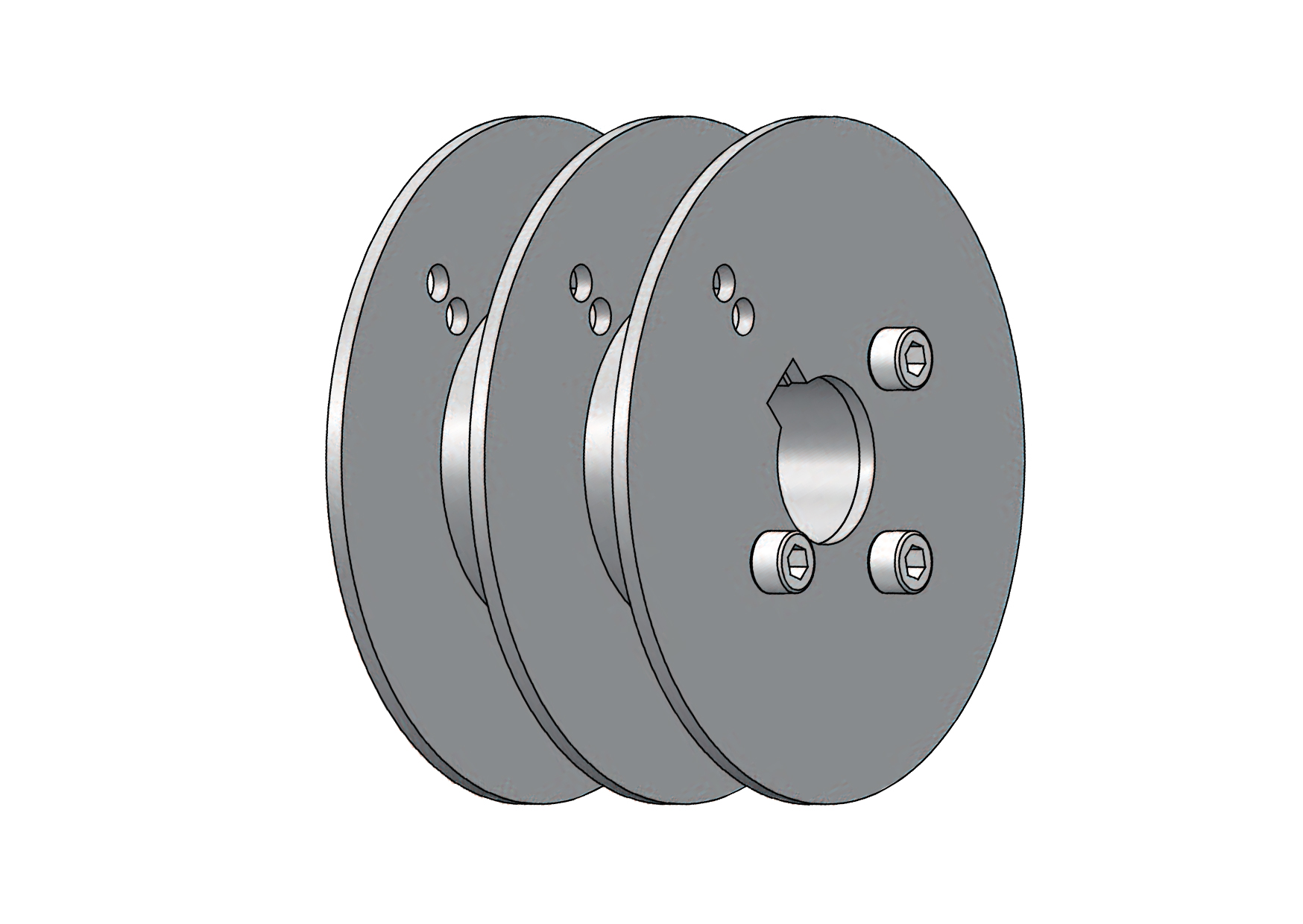

• Double pulley

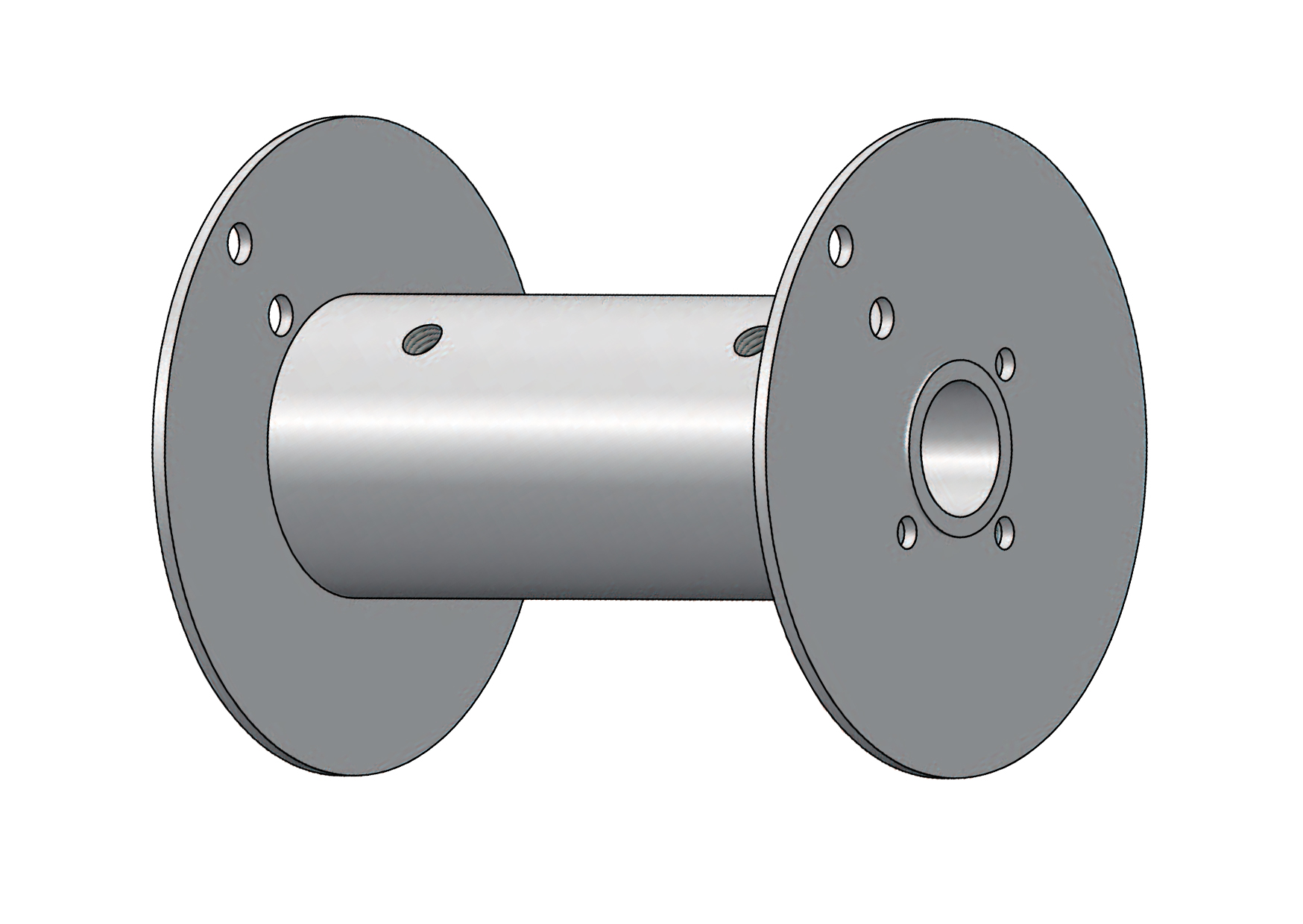

• Large pulley

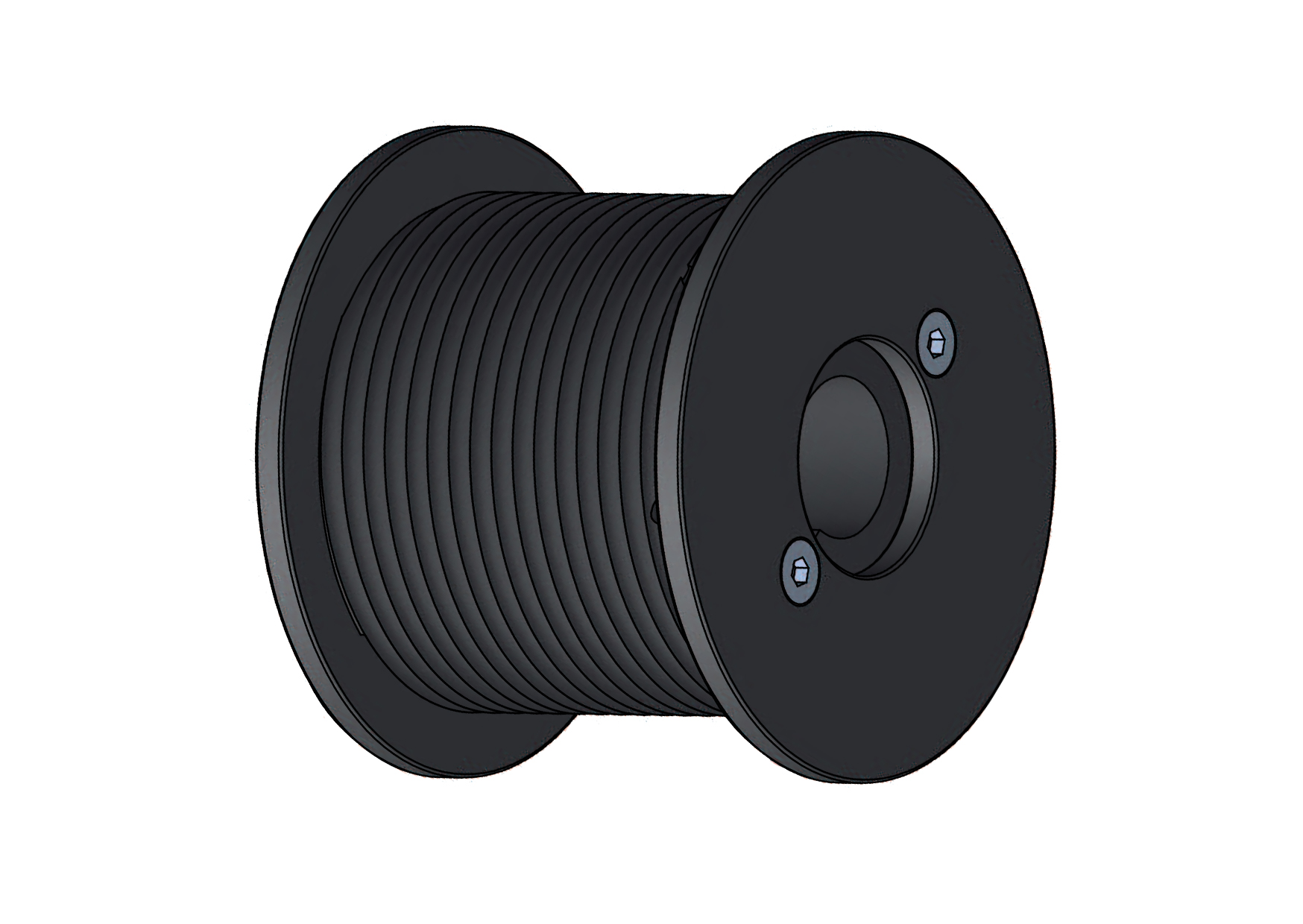

• Cable drum

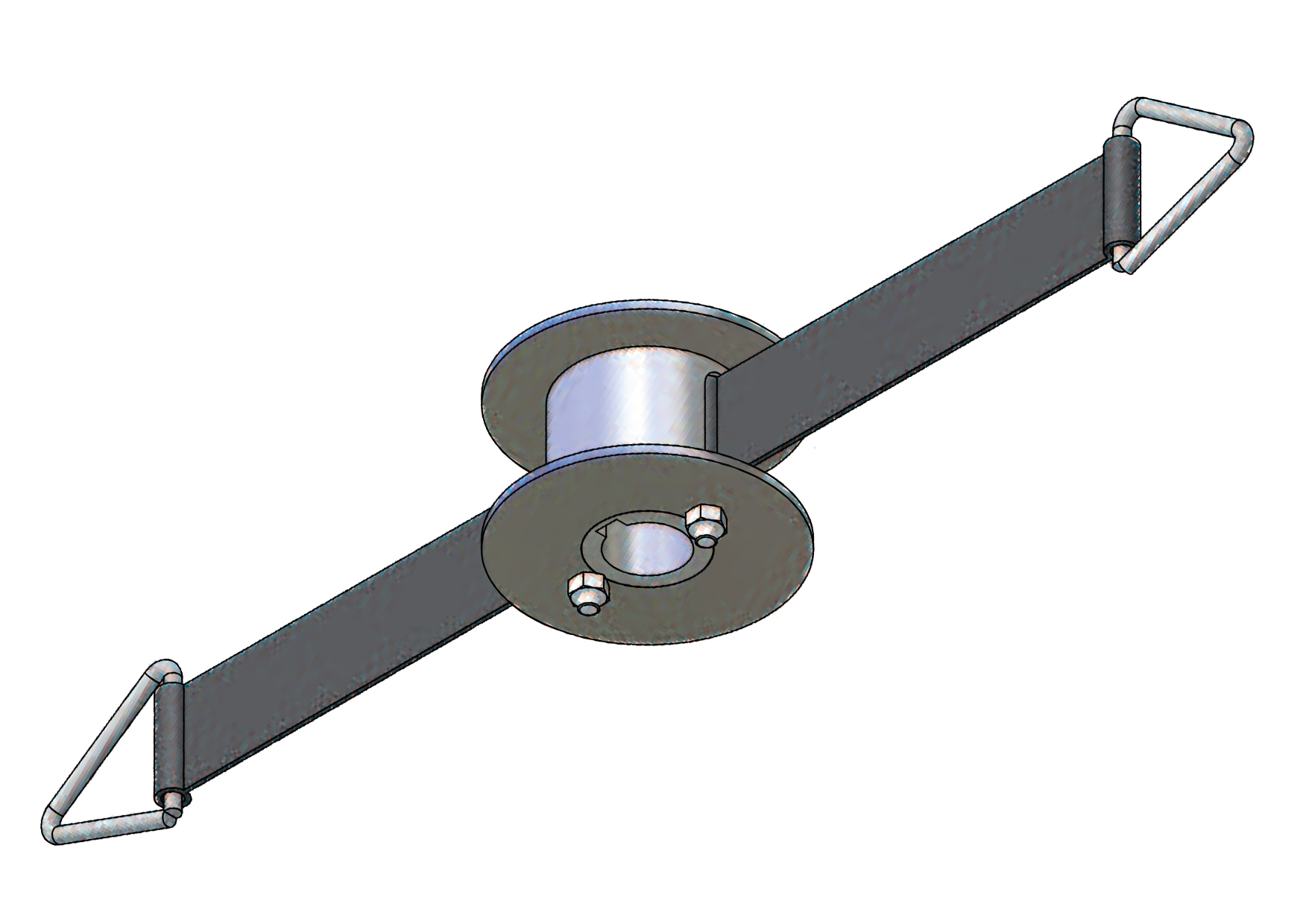

• Double band pulley

Brochure

Our technical office is at your disposal to optimize and suggest the best solutions.

Call us: + 39 0184 476420 or send us an email: m.digitali@vialesistemi.com
