PRP1 SERIES

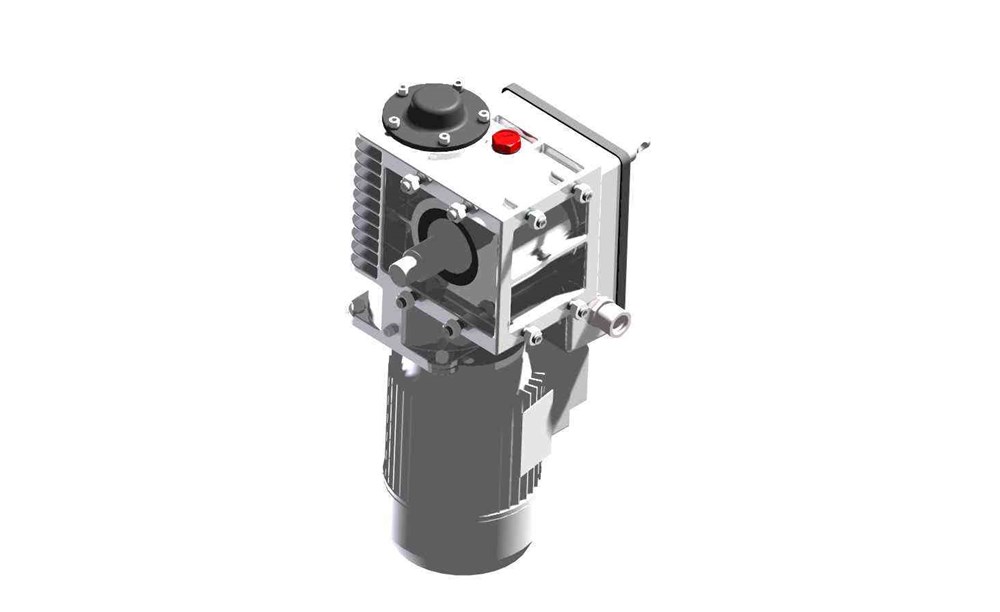

Gearmotors Series PRP1

Available for the sector

Greenhouses

This model was devised for the new roll-up opening systems. Its compact design and size make it fit for side applications with telescopic arms or in combination with roll-up sliding guides.

Models

Accessories

Download

Item code	Ph	Hz	Kw	A	V	Rpm	Nm	Kg
PRP1-1435-.... - 3ph-50Hz/60Hz	3	50/60	0.25	0.9	230-440	6	170	14
PRP1-1450-.... - 3ph-50Hz/60Hz	3	50/60	0.37	1.2	230-440	6	240	17
PRP1-1425-.... - 1ph-50Hz	1	50	0.18	1.7	230	6	110	14
PRP1-1450-.... - 1ph-50Hz	1	50	0.37	3.9	230	6	170	17

RELATED PRODUCTS

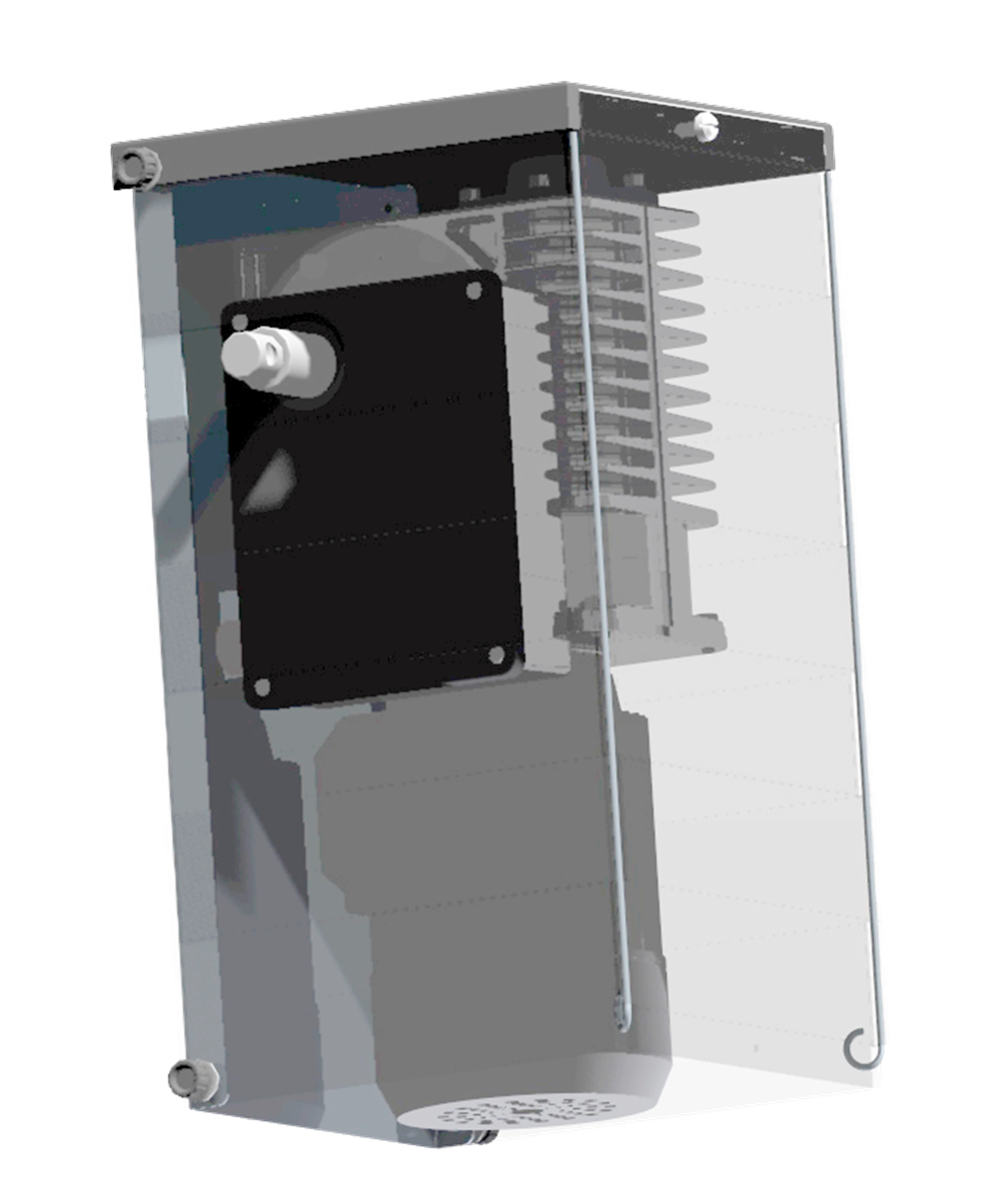

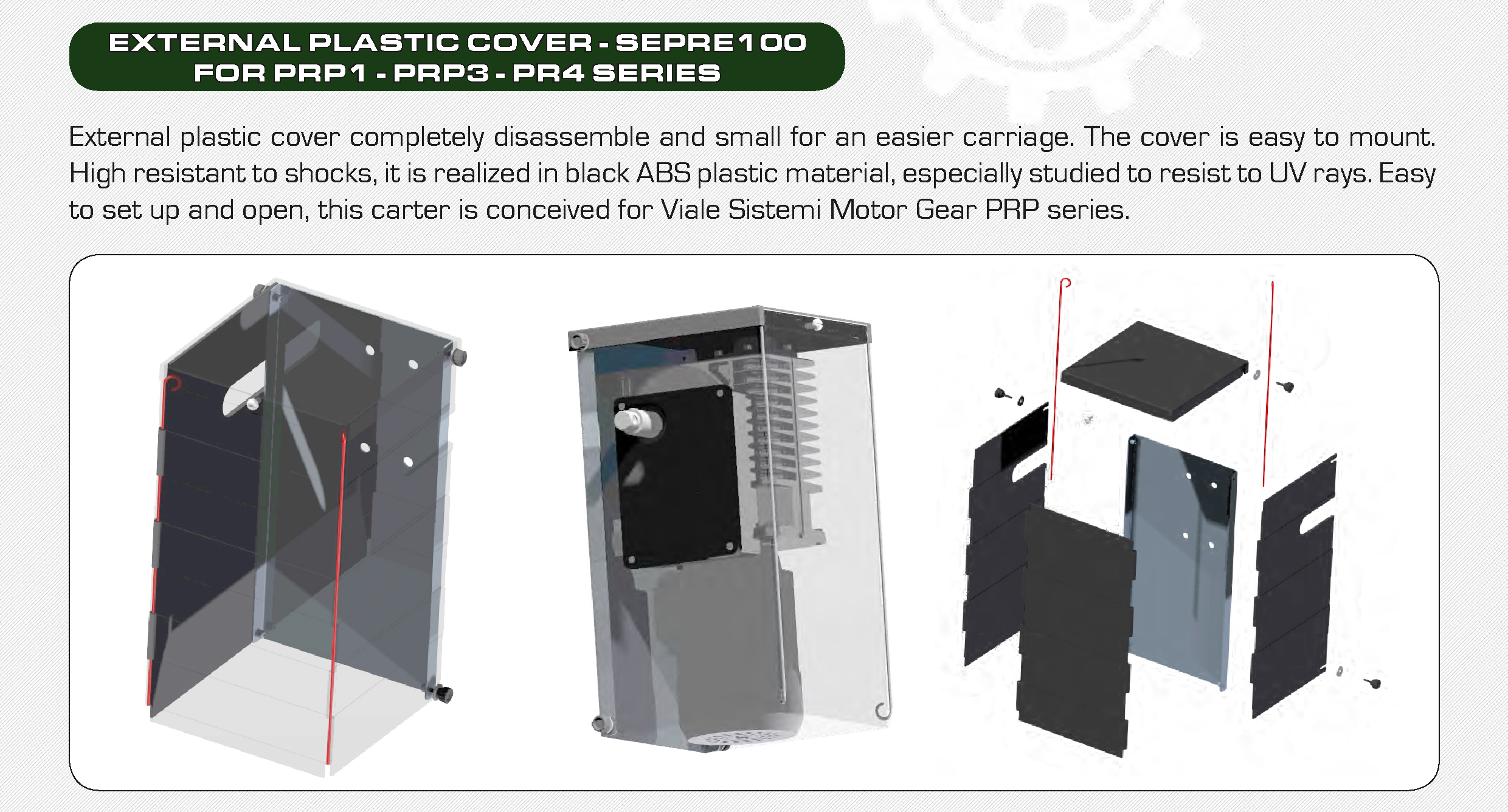

• External plastic cover

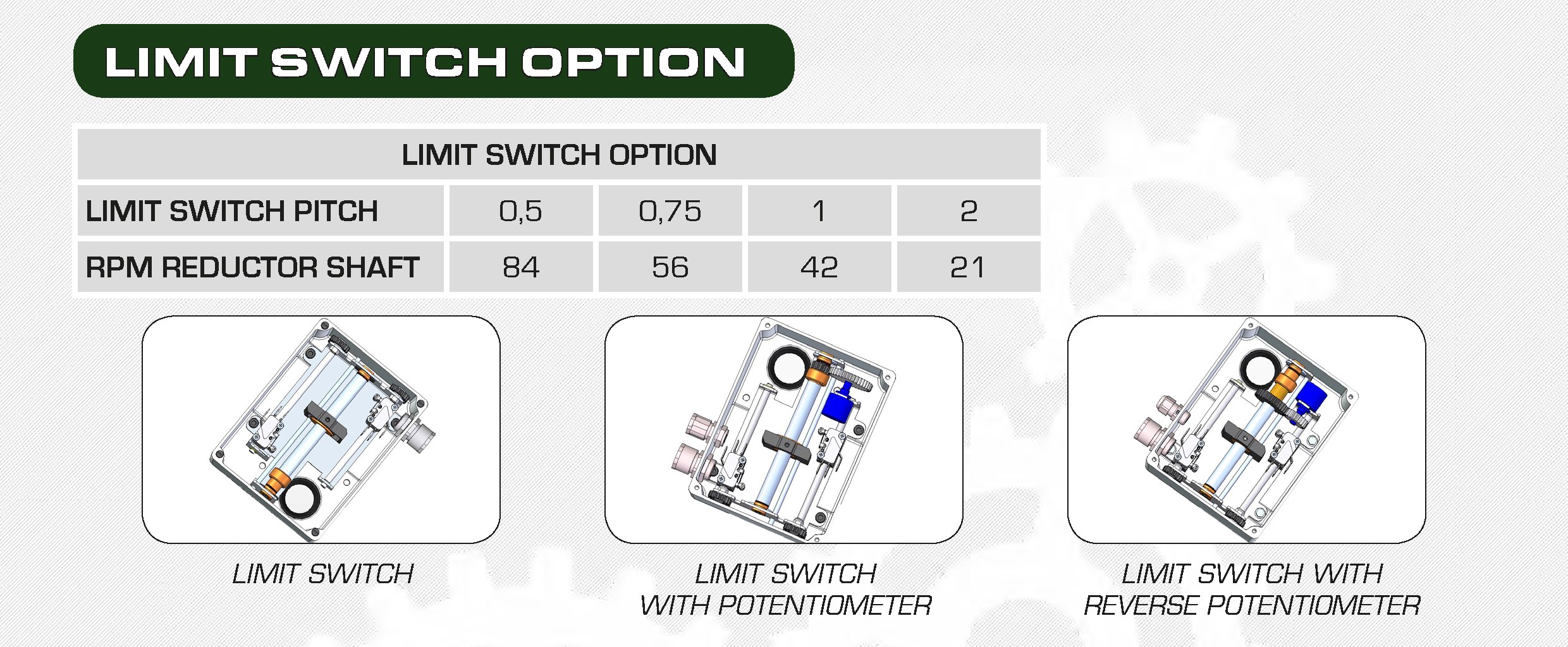

• Limit switch

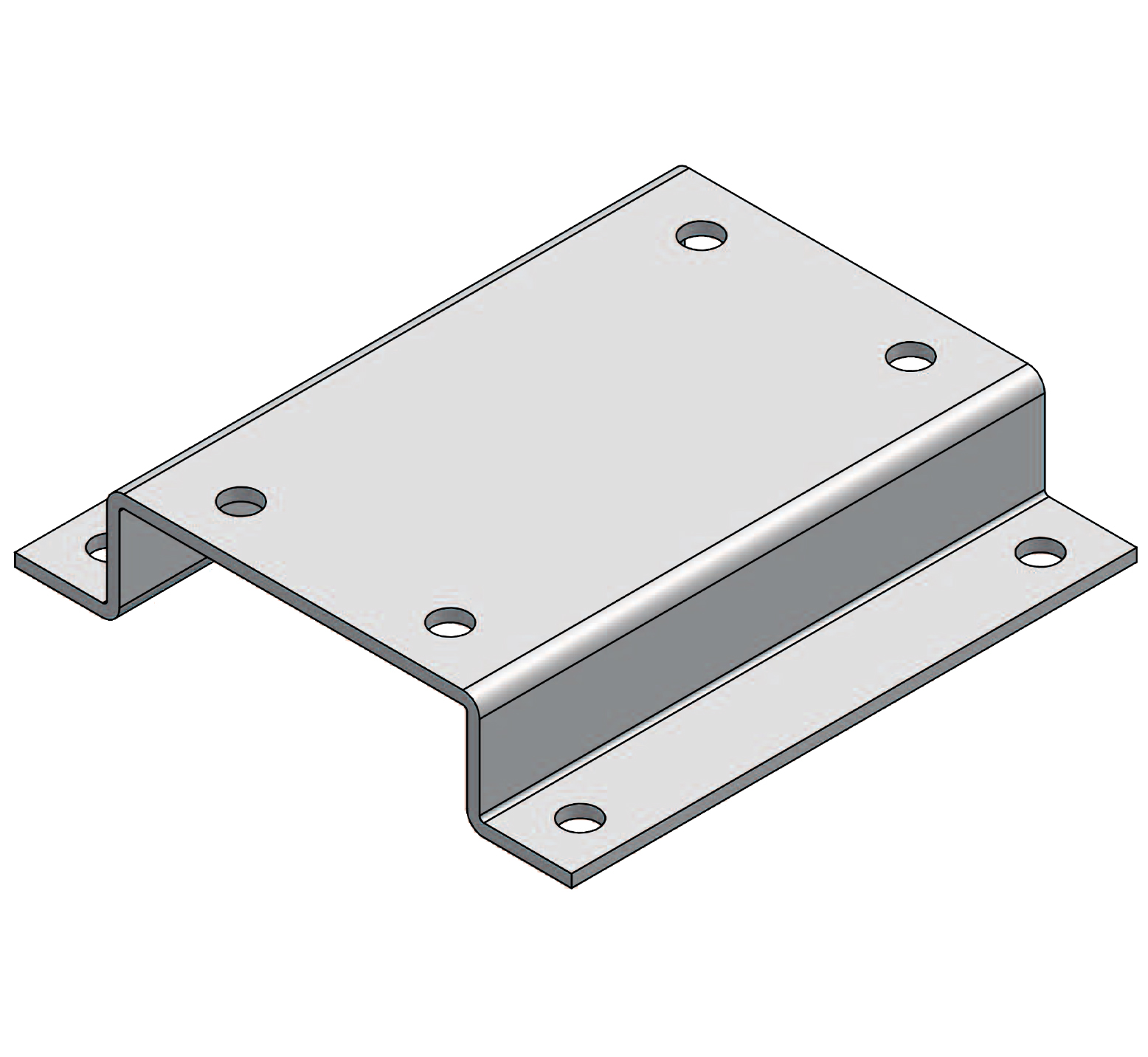

• Wall mounting plate for PR series

• Stainless steel shafts

Brochure

Our technical office is at your disposal to optimize and suggest the best solutions.

Call us: + 39 0184 476420 or send us an email: m.digitali@vialesistemi.com
