PR4 SERIES

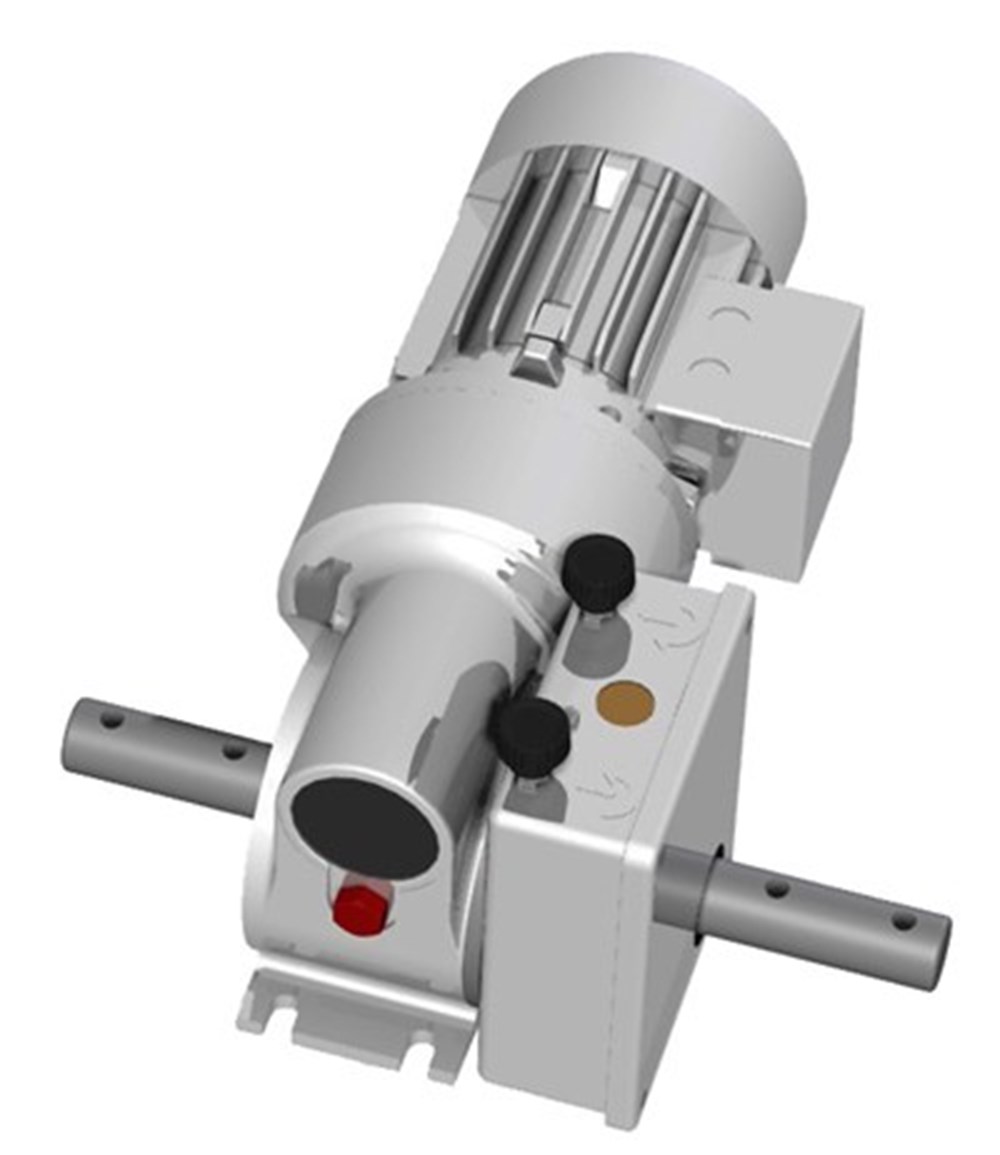

Gearmotors Series PR4

Available for the sector

Poultry Farms

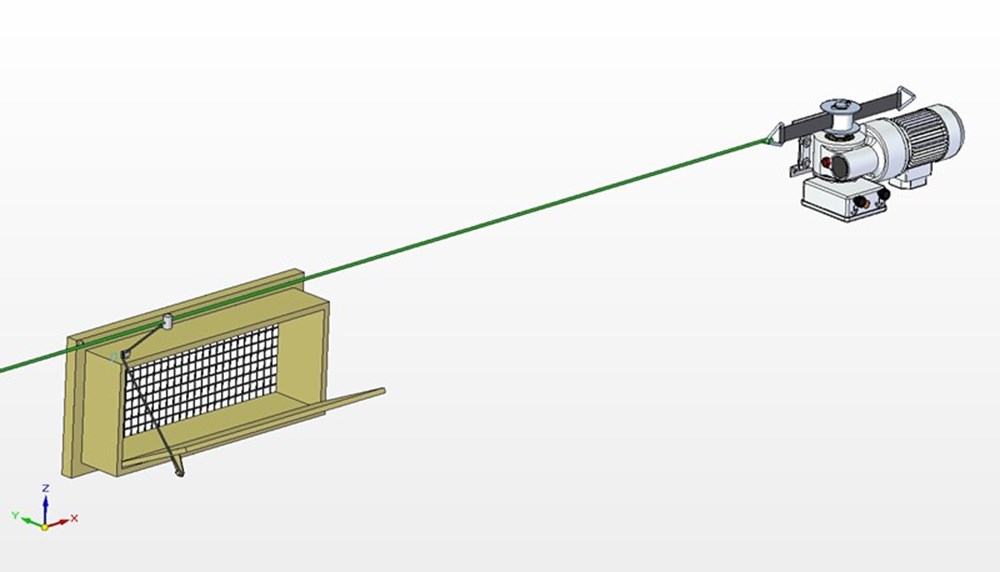

Last born of the PR family, it is ideal when shaft’s low velocity is needed; for use in animal farming applied to tilting windows, “up and down” windows or pulley hoisting. Its compact design and size make it fit for any type of structure.

Models

Accessories

Download

Item code	Ph	Hz	Kw	A	V	Rpm	Nm	Kg
PR4*1435-.... - 3ph-50Hz	3	50	0.25	0.9	230-440	1.2	280	14
PR4*1435-.... - 1ph-50Hz	1	50	0.37	3.9	230	1.2	280	15
PR4*1435-.... - 3ph-60Hz	3	60	0.33	1.4	277-480	1.5	270	14

RELATED PRODUCTS

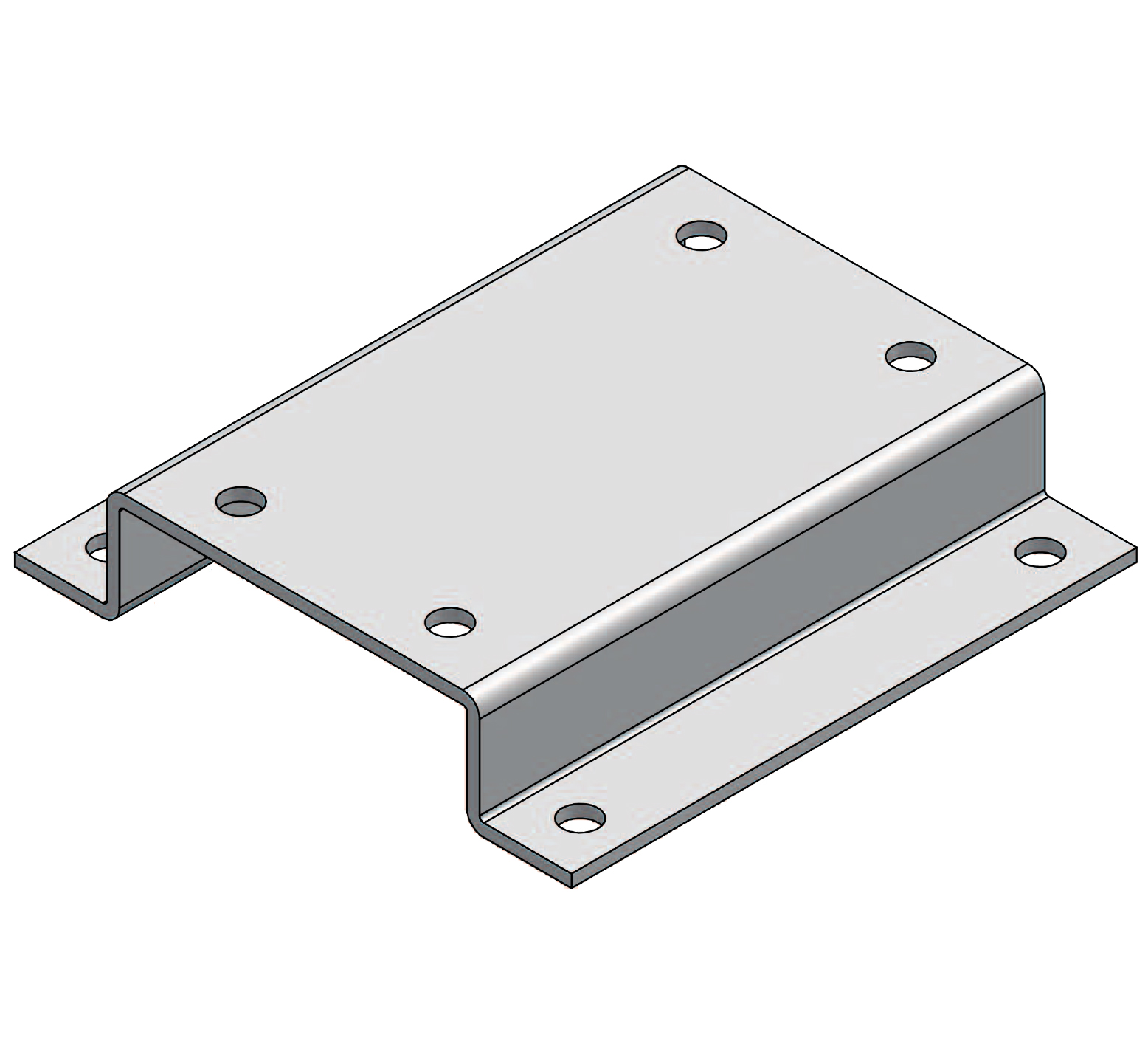

• Wall mounting plate for PR series

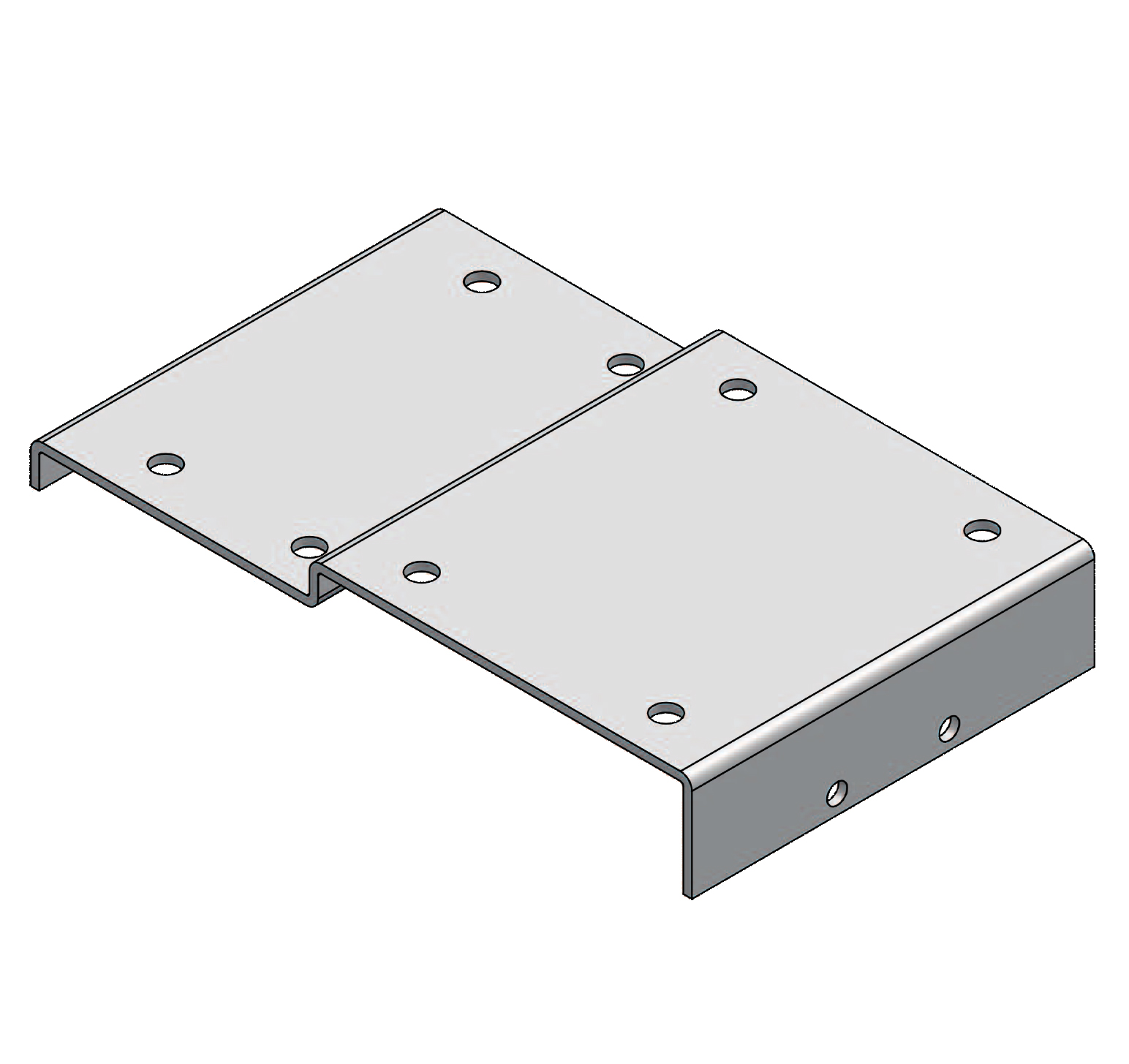

• Ceiling mounting plate for PR series

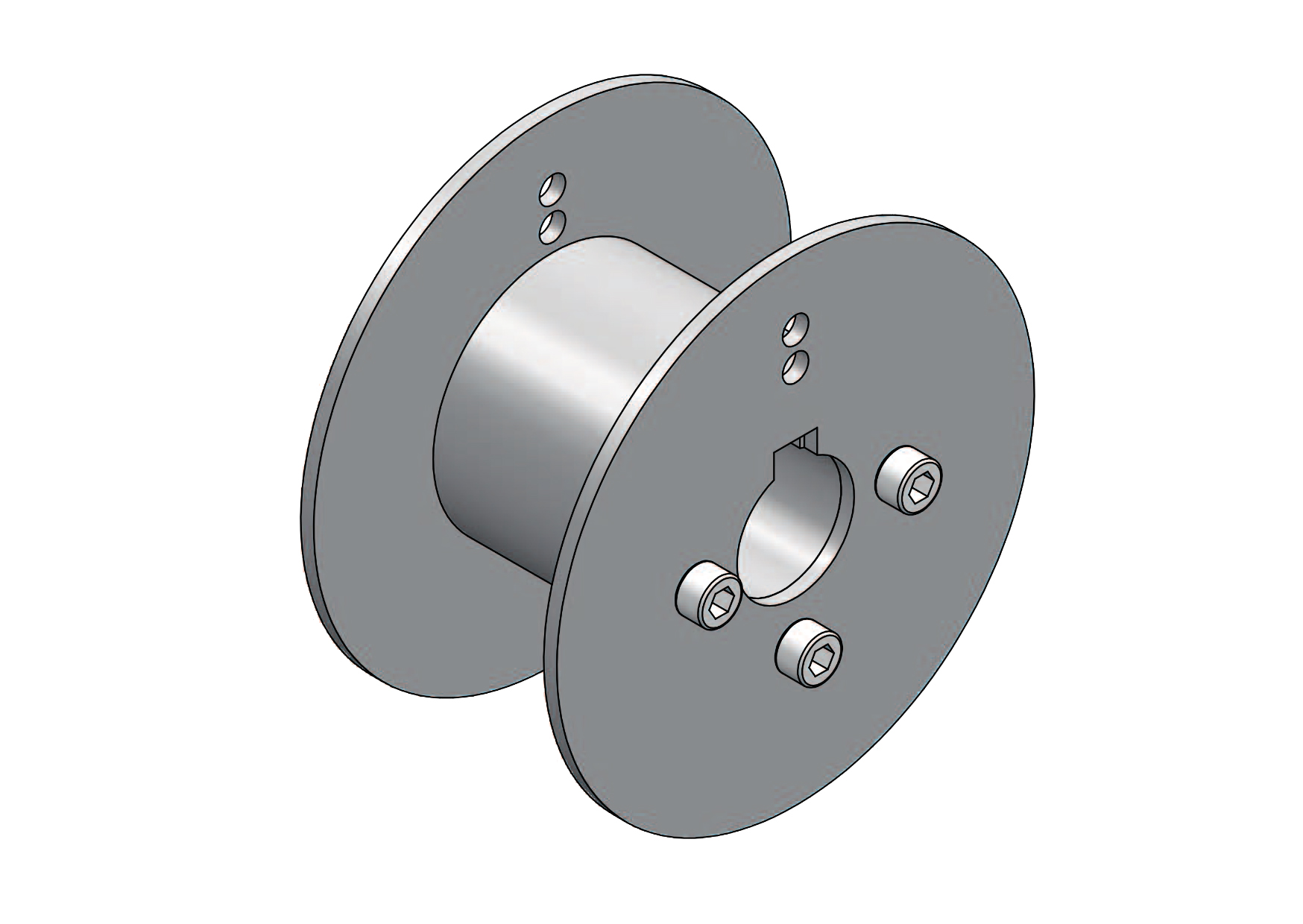

• Single pulley

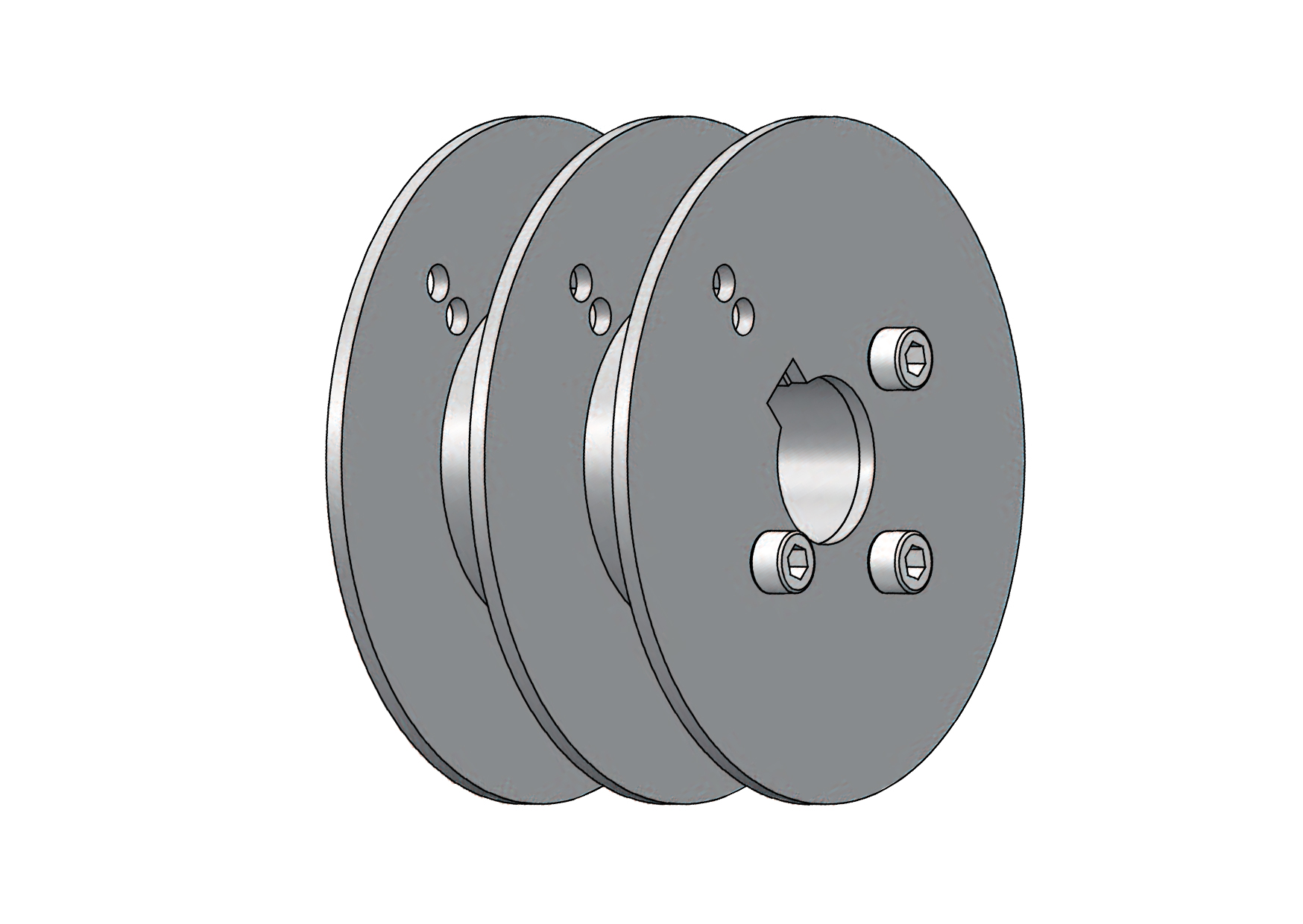

• Double pulley

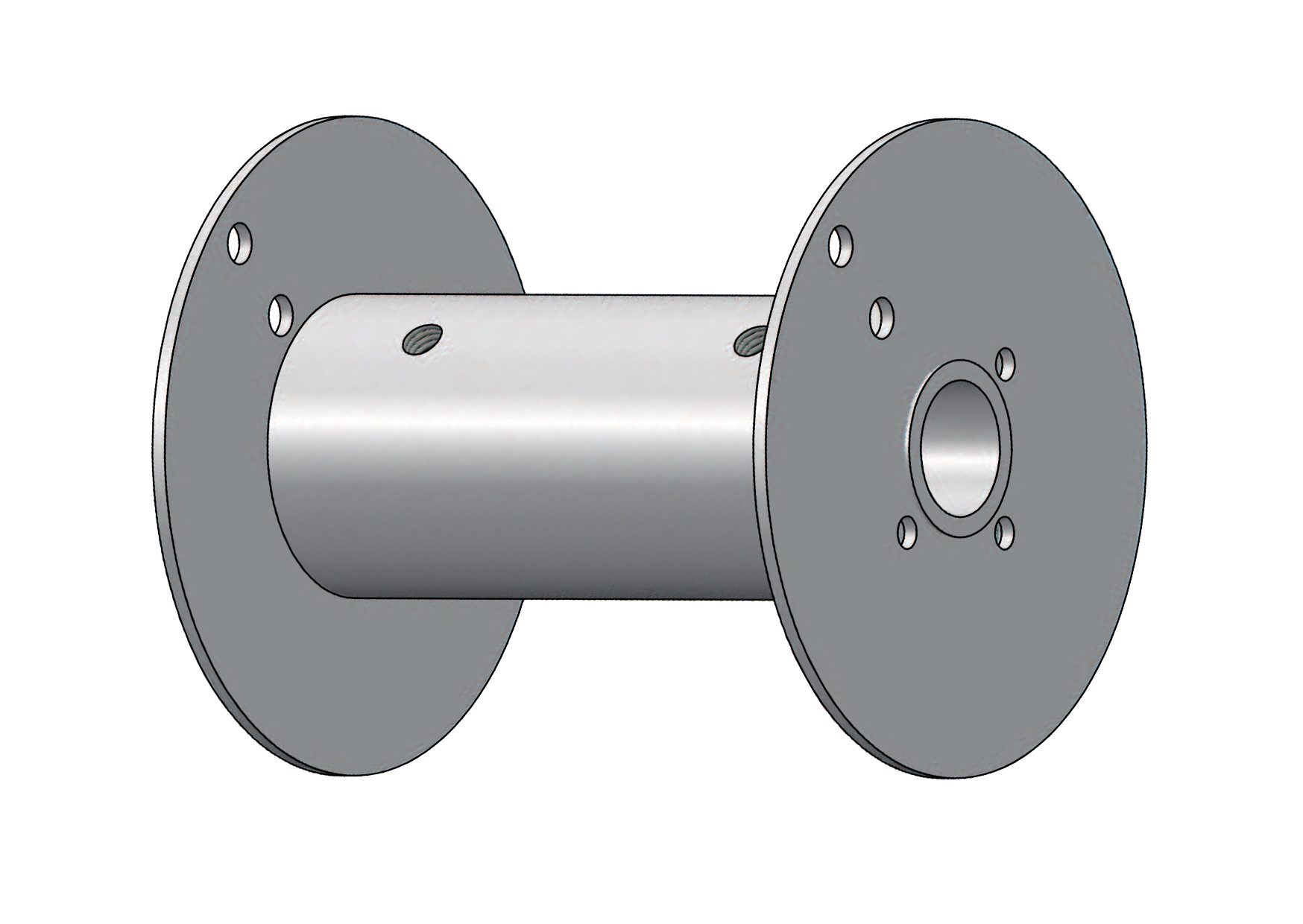

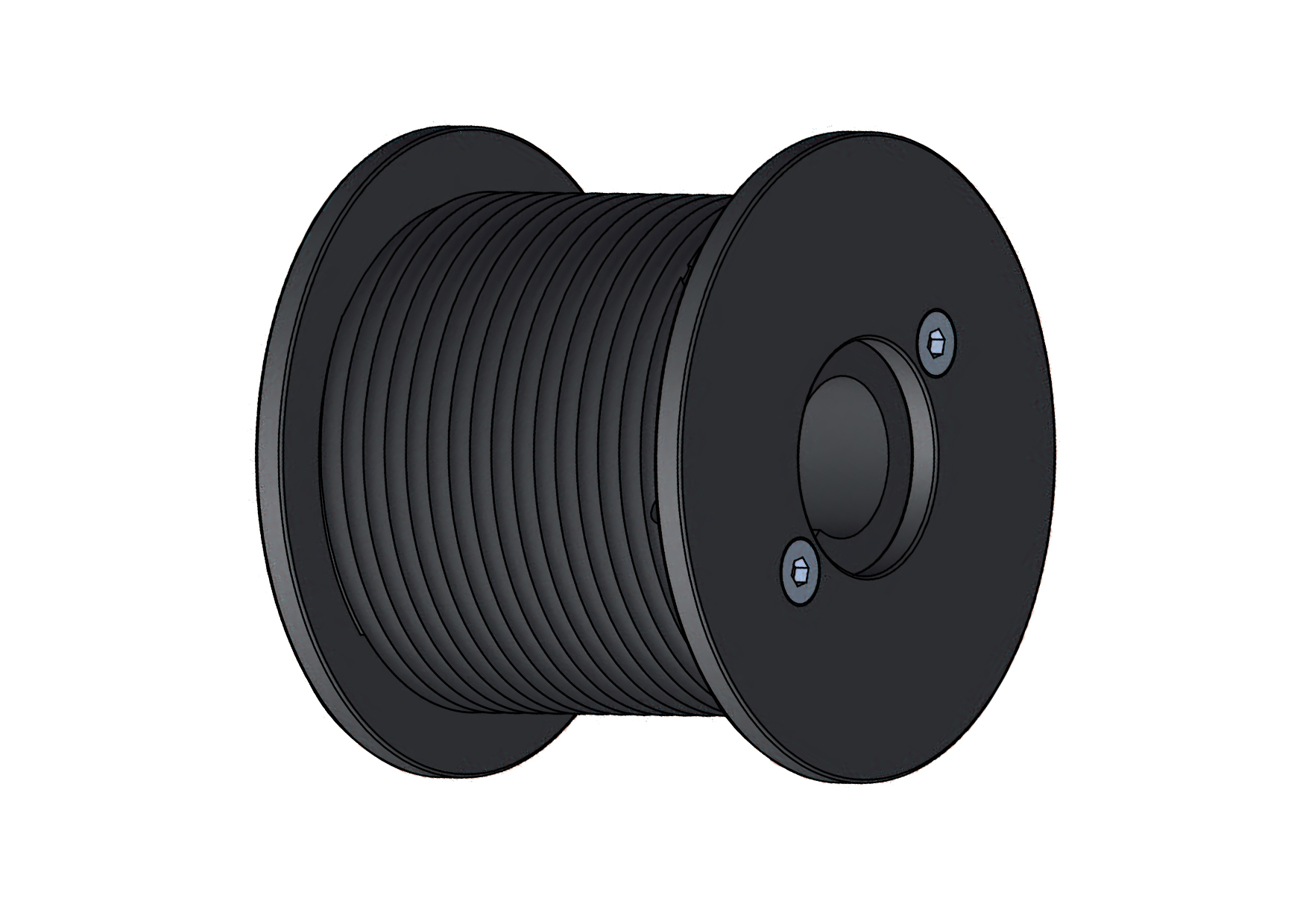

• Large pulley

• Cable drum

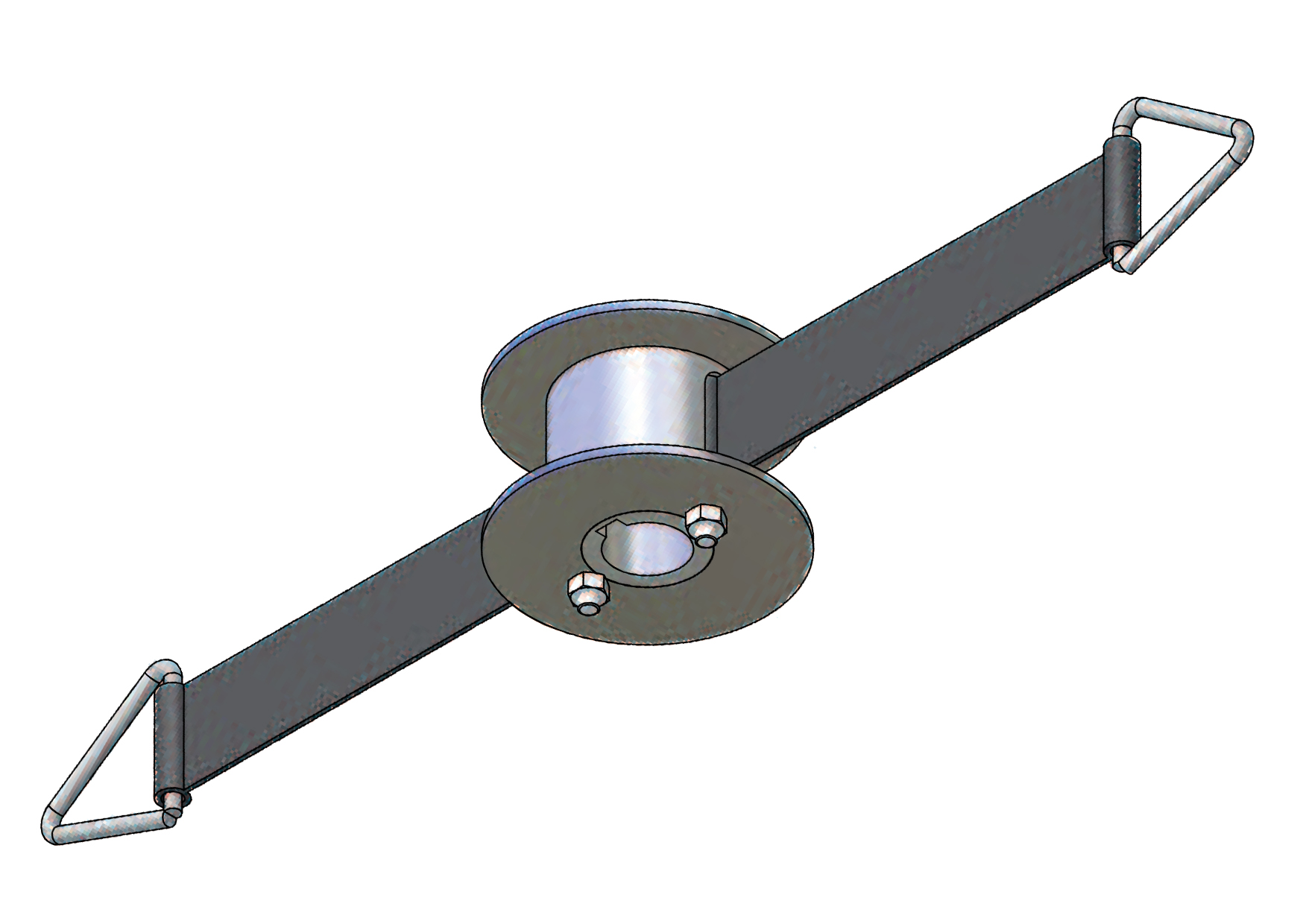

• Double band pulley

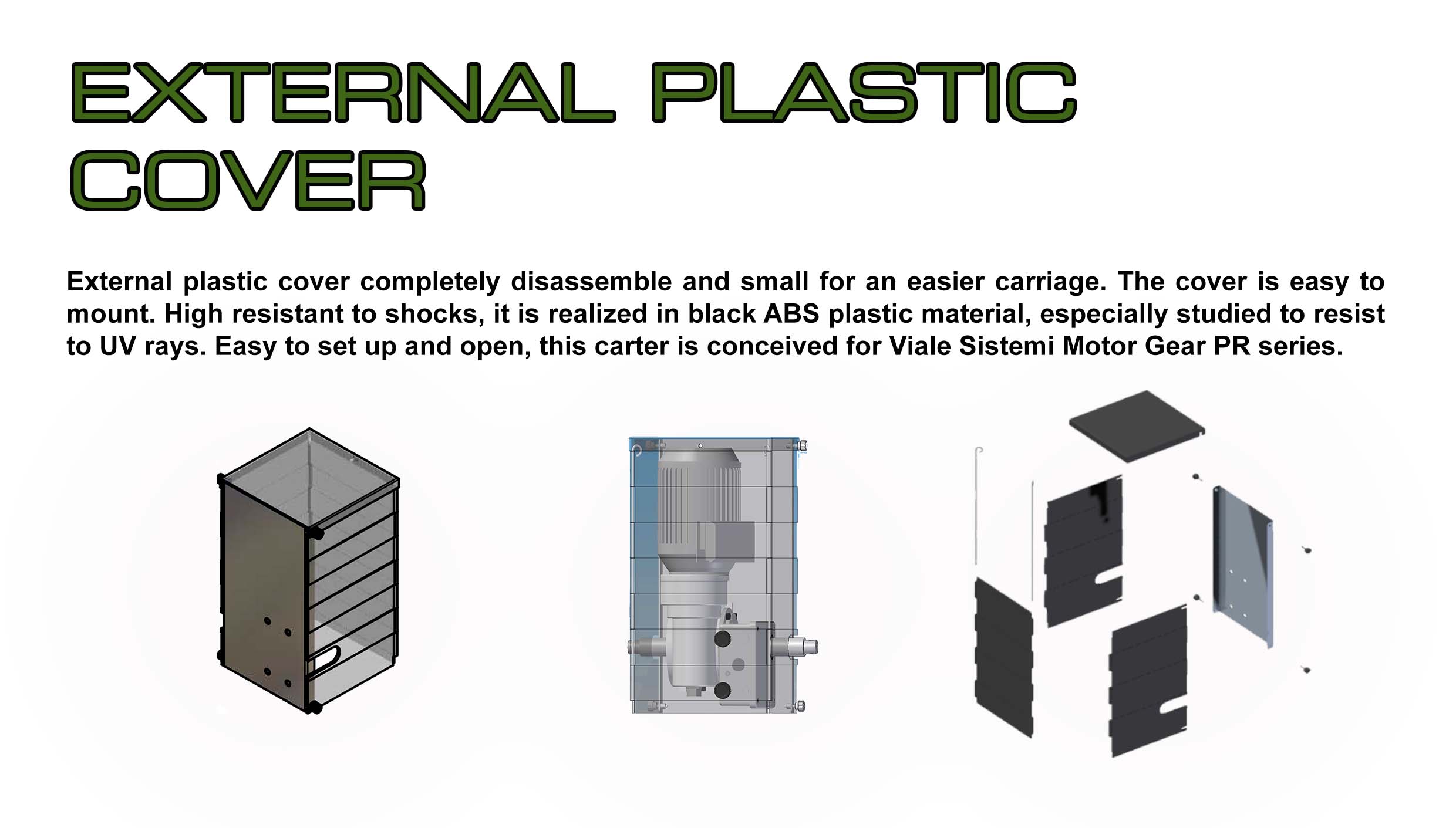

• External plastic cover

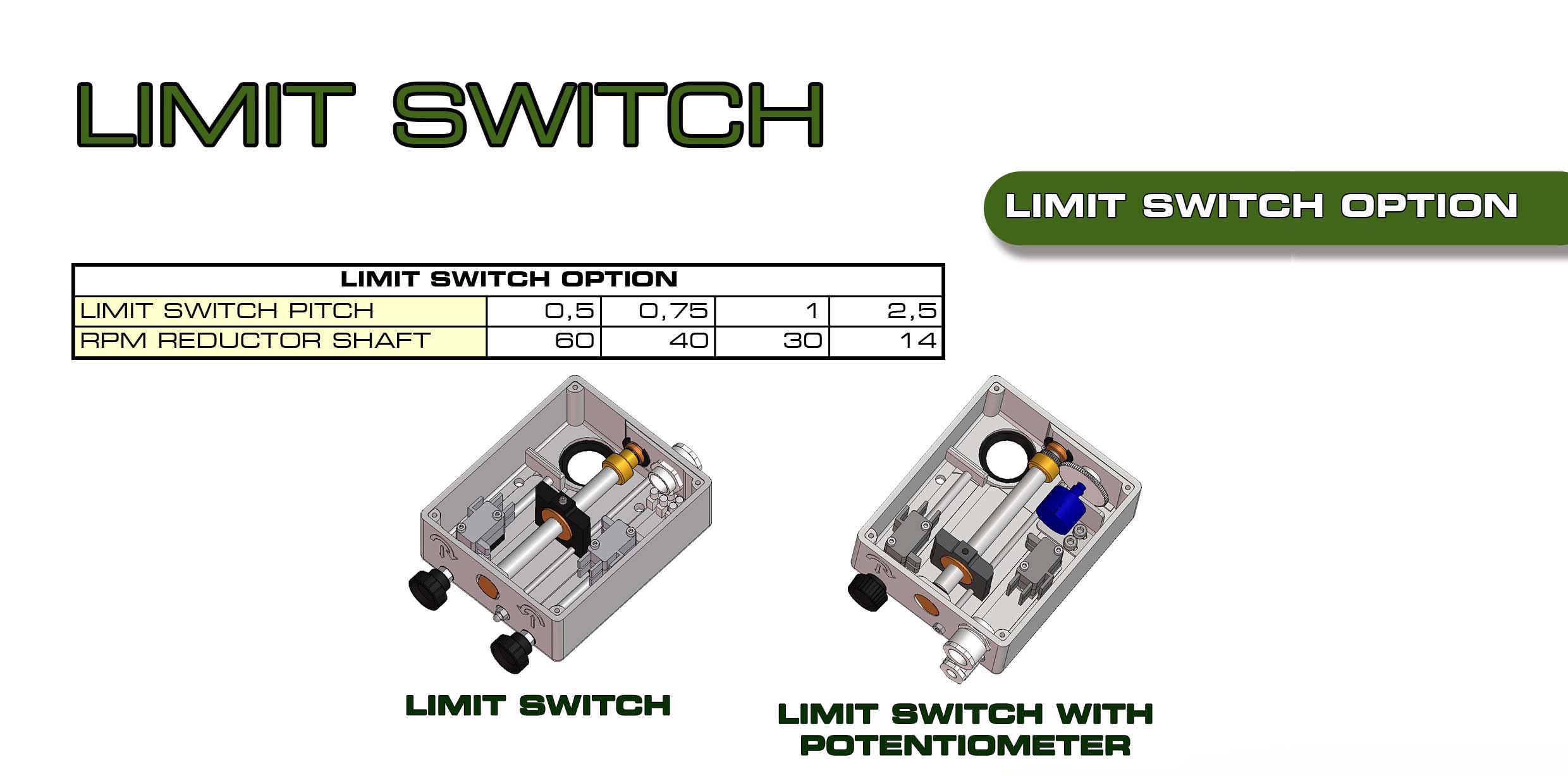

• Limit switch

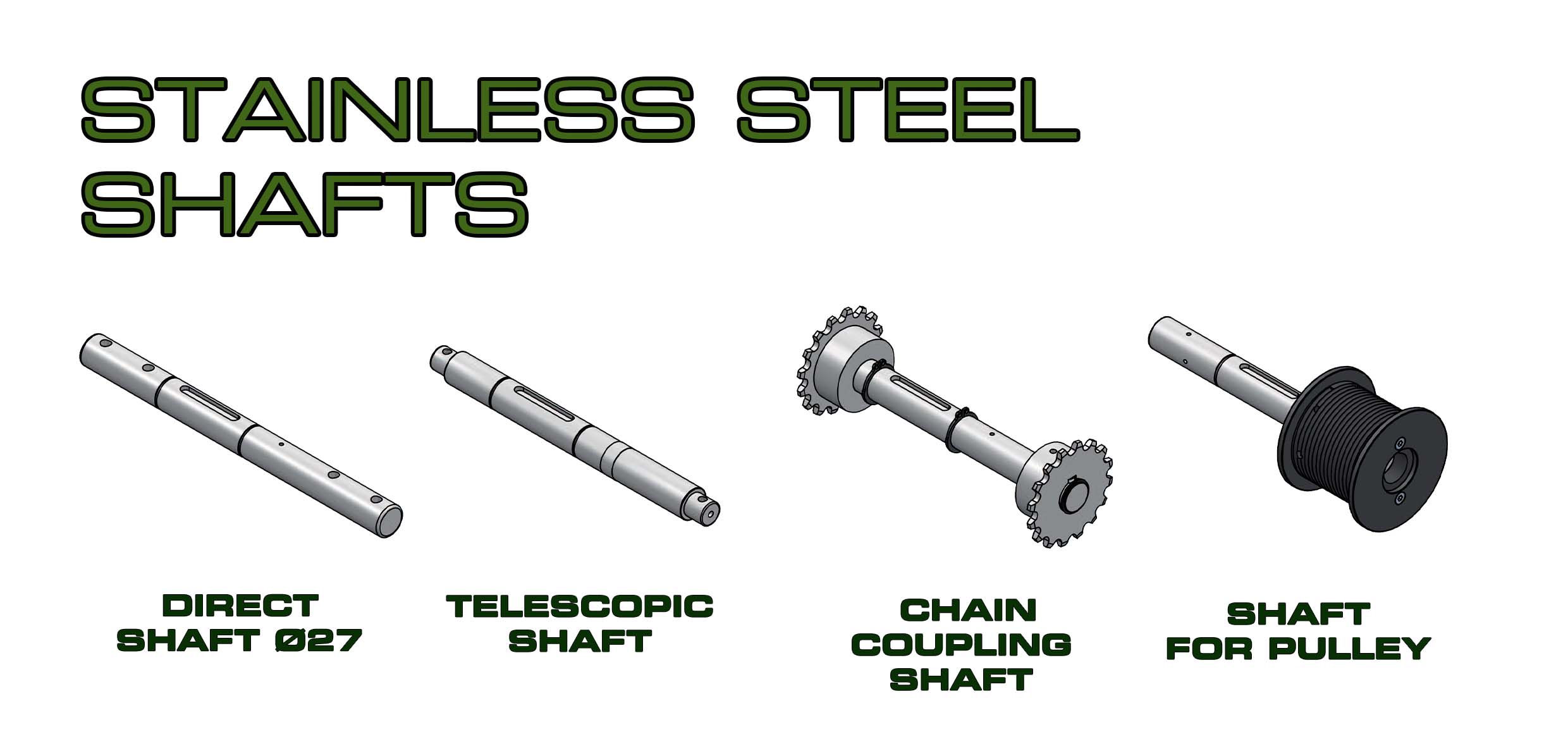

• Stainless steel shafts

Brochure

Our technical office is at your disposal to optimize and suggest the best solutions.
