DVE1 SERIES

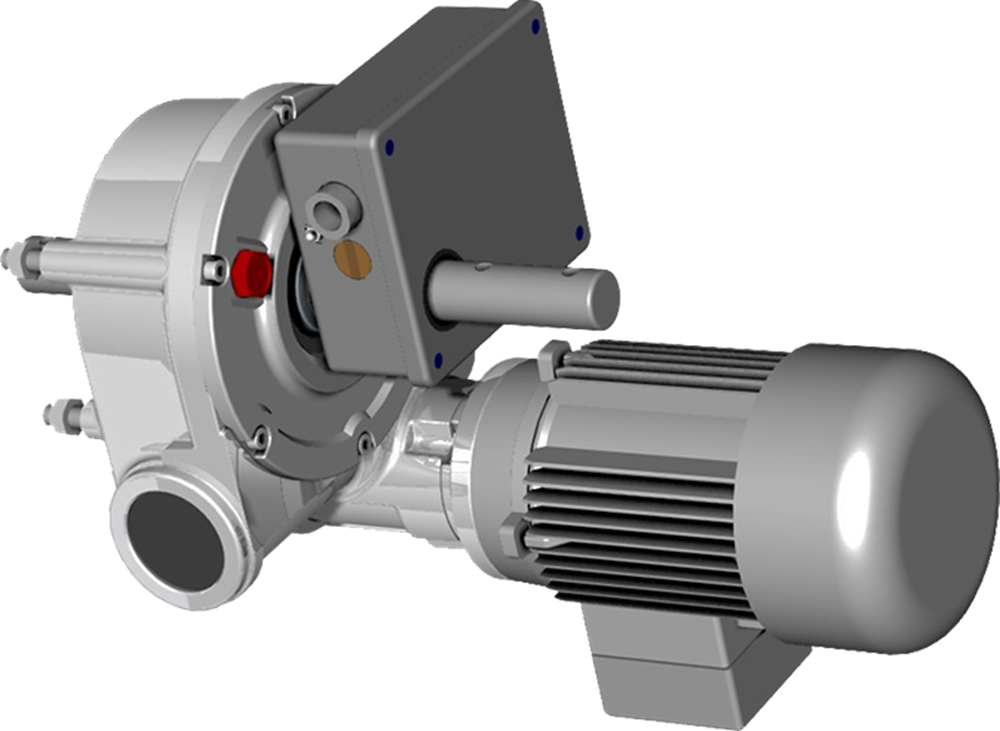

Gearmotors Series DVE1
Available for the sector
  • Greenhouses

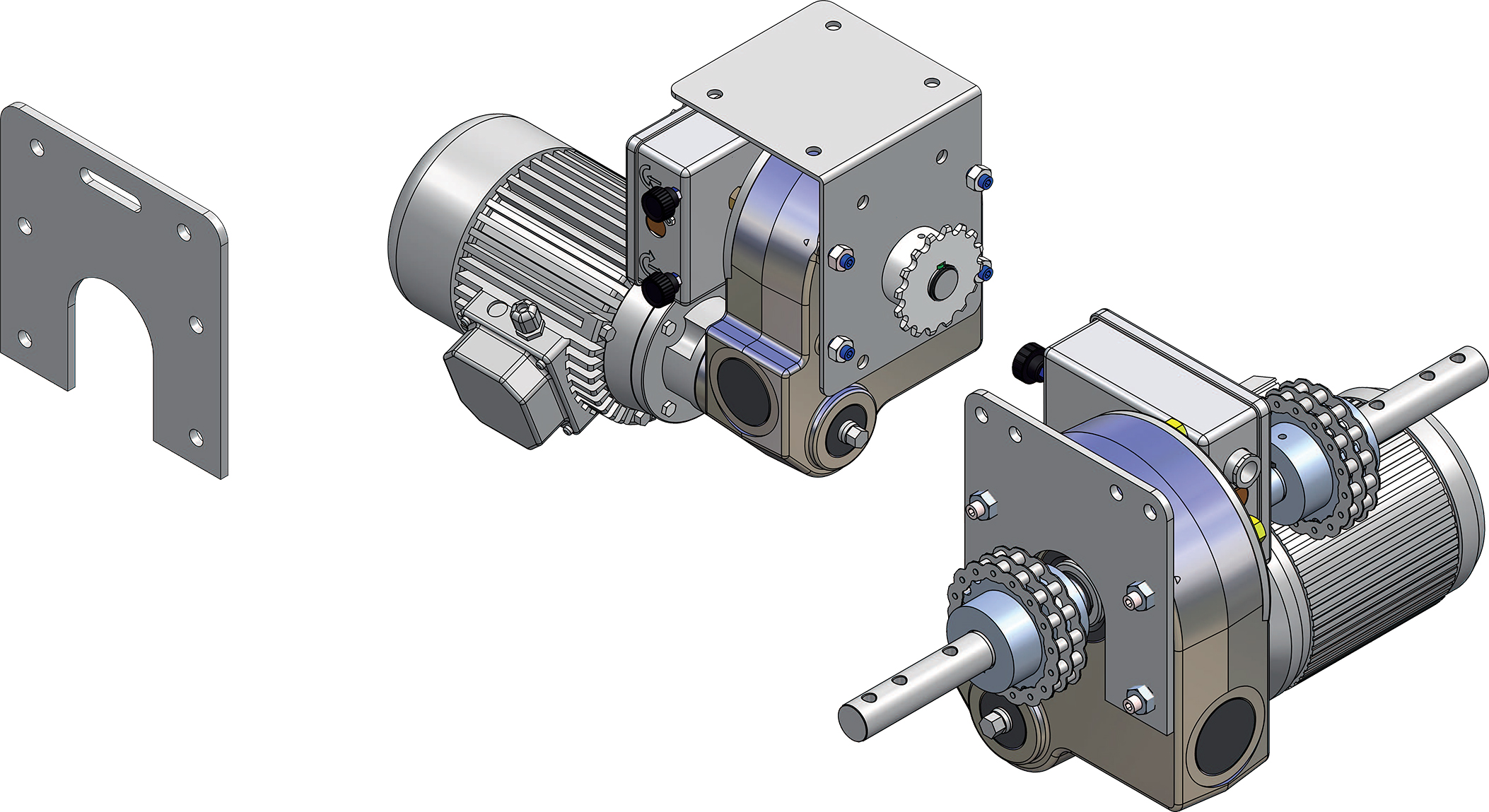

 Gearmotor with a compact design ideal for applications where the needed shaft velocity is very low. It's compact size allows for an easy mounting on every type of stucture or greenhouse.

Item code Ph Hz Kw A V Rpm Nm Kg
DVE1*1416-.... - 3ph-50Hz 3 50 0.12 0.6 230-440 1.2 200 18
DVE1*1425-.... - 3ph-50Hz 3 50 0.18 0,8 230-440 1.2 260 18
DVE1*1450-.... - 3ph-50Hz 3 50 0.37 1.2 230-440 1.2 400 20
DVE1*1416M-.... - 1ph-50Hz 1 50 0.12 1.3 230 1.2 180 18
DVE1*1425M-.... - 1ph-50Hz 1 50 0.18 1.7 230 1.2 230 18
DVE1*1450M-.... - 1ph-50Hz 1 50 0.37 3.2 230 1.2 340 20
DVE1*1416-.... - 3ph-60Hz 3 60 0.14 0.7 277-480 1.4 190 18
DVE1*1425-.... - 3ph-60Hz 3 60 0.22 1 277-480 1.4 250 18
DVE1*1450-.... - 3ph-60Hz 3 60 0.44 2 277-480 1.4 390 20

Our technical office is at your disposal to optimize and suggest the best solutions.

Call us: + 39 0184 476420 or send us an email: m.digitali@vialesistemi.com
